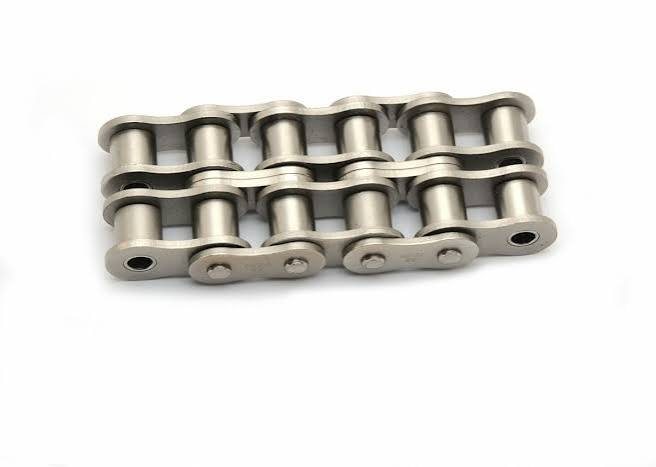

About #140SS-2 Stainless Steel Roller Chain
#140SS-2 strand stainless steel roller chain follows ANSI specifications with 44.45mm pitch. Made of SUS304 stainless steel, it features remarkable rust and corrosion resistance, adapting to humid, chemical and food-grade working environments.
Its double-strand structure greatly improves load-bearing capacity for heavy-duty transmission. Exquisite processing and solid riveting enable low noise, smooth operation and long service life. Easy to wash and sanitize, it fits food, pharmaceutical and chemical conveying equipment.
Custom attachments and cut lengths are acceptable. Each chain is strictly inspected on tensile strength and dimensions to ensure stable performance.

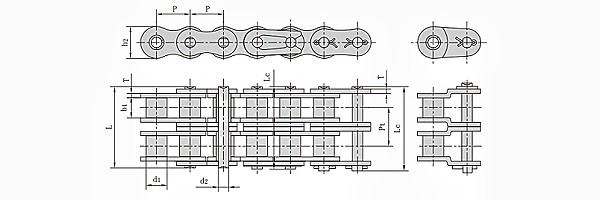

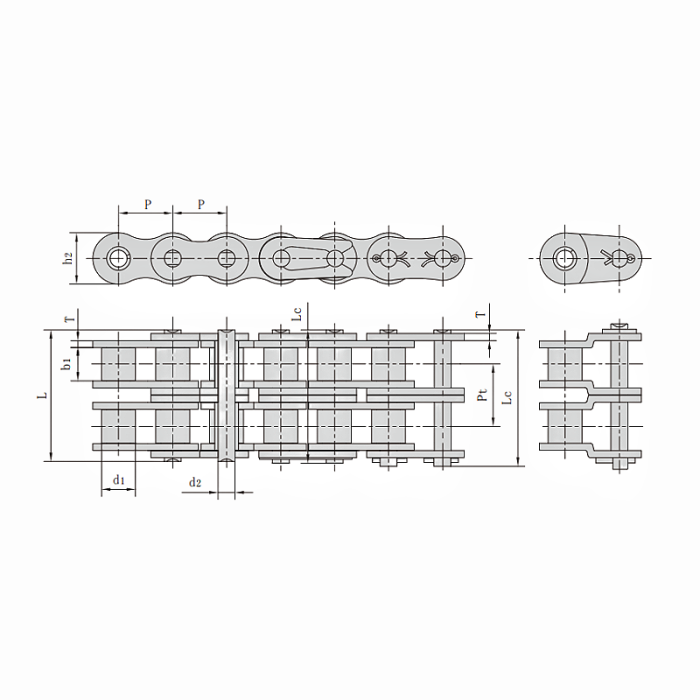

ANSI #140SS-2 Stainless Steel Roller Chain Dimension
Pitch (P): 38.1mm
Roller diameter : 22.23mm
Width between inner plates (b1): 25.22mm
Pin diameter (d2): 11.1mm
Pin length (L): 95.8mm
Pin length (Lc): 99.7mm
Inner Plate depth (h2): 35.7mm
Plate thickness (T): 4.8mm
Transverse pitch (Pt): 45.44mm
