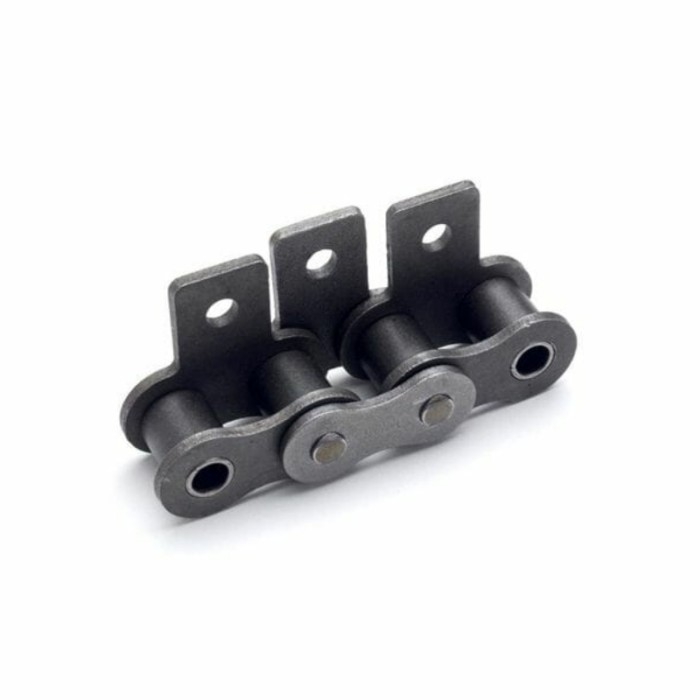

#120 SA1 attachment roller chain is manufactured following ANSI B29.1 standards. Equipped with single-sided straight SA1 attachments with mounting holes, it facilitates easy installation of conveying fixtures, baffles and carrying brackets. All pins, bushings and rollers are heat-treated to deliver high tensile strength, superior wear resistance and low elongation during long-time continuous operation.
This chain fits packaging machinery, agricultural conveyors, automated logistics transport and general material handling systems. Riveted and cottered connecting links are both optional. Full-process quality inspection ensures steady transmission, stable performance and long service life for various medium-load conveying applications.

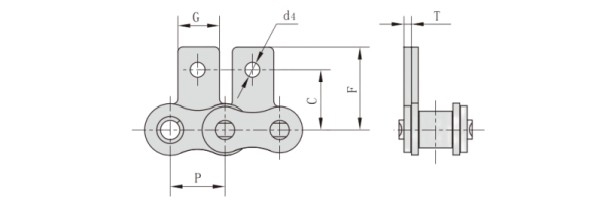

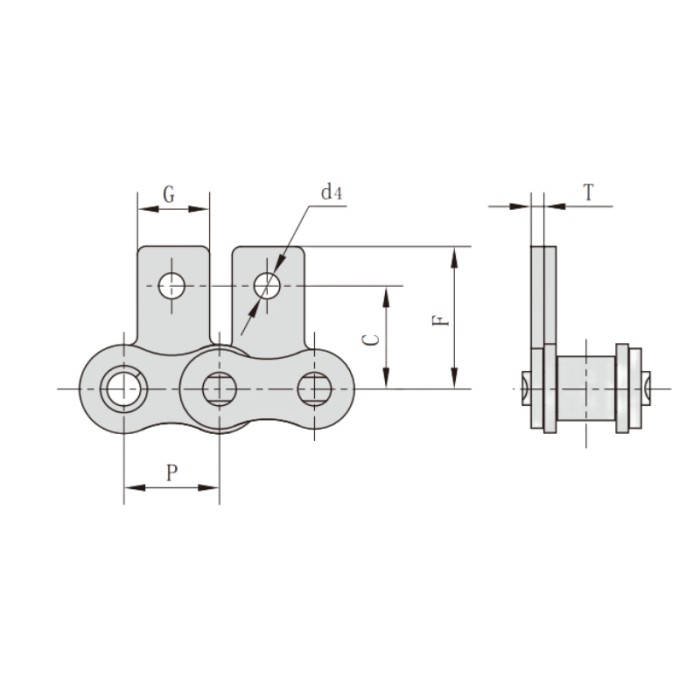

ANSI #120 SA1 Attachment Roller Chain Dimension
Pitch (P): 38.1mm
Attachment Dimension (G): 28.6mm
Attachment Dimension (C): 36.5mm
Attachment Dimension (F): 51.6mm
Attachment Dimension (d4): 9.8mm
Link Plate Thickness (T): 4.8mm
