ANSI #120 Roller Chain With K1 Attachment

  • Categories: Roller Chain With K1 Attachments
  • Brand: HXST-Drive
  • Model: ANSI 120-K1 Roller Chain
  • Material: Carbon Steel
  • Color: Natural
  • Surface Treatment: Shot Peening /Heat Treatment/Plating/Lubrication
  • Accuracy: High Precision Roller Chain
  • Quality: Durable Roller Chain
  • Interchangeability: Directly Interchangeable With Other Brands
  • +86 15336786278
    jake@hxstdrive.com
    • Product Introduction

    Product Introduction


    裁剪旋转 (1)_compressed.jpeg

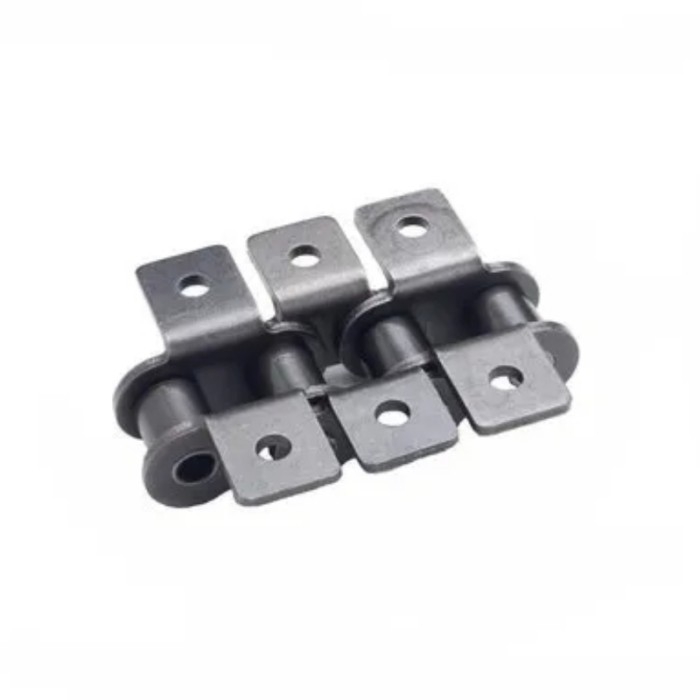

    About #120 K1 Attachment Roller Chain


     #120 K1 attachment roller chain is produced to ANSI B29.1 specifications. Designed with double-sided K1 attachments with mounting holes, it allows secure installation of push plates, slats and conveying accessories. All critical parts including pins, bushings and rollers receive professional heat treatment, offering great tensile strength, outstanding wear resistance and minimal elongation under long-term conveying loads.

    It is extensively used in packaging equipment, agricultural conveyors, automated logistics and material transporting systems. Riveted and cottered connecting ends are optional to meet assembly demands. Rigorous quality checks guarantee stable running, reliable performance and long service life for various industrial conveying applications.

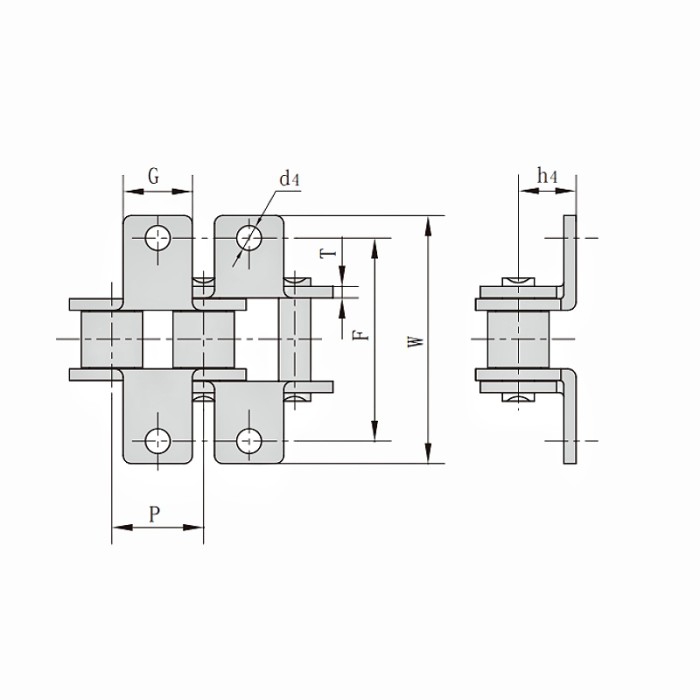

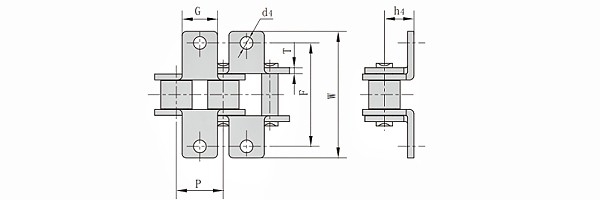

    ANSI #120 K1 Attachment Roller Chain Dimension





  • Pitch (P): 38.1mm
  • Attachment Dimension (G): 28.6mm
  • Attachment Dimension (F): 76.2mm
  • Attachment Dimension (W): 108.5mm
  • Attachment Dimension (h4): 23mm
  • Attachment Dimension (d4): 9.8mm
  • Link Plate Thickness (T): 4.8mm
