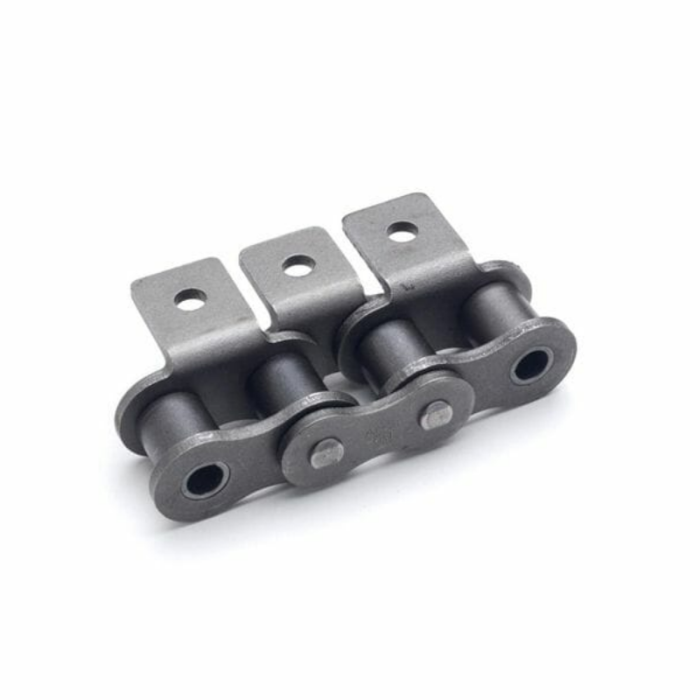

ANSI #120 Roller Chain With A1 Attachment

  • Categories: Roller Chain With A1 Attachments
  • Brand: HXST-Drive
  • Model: ANSI 120-A1 Roller Chain
  • Material: Carbon Steel
  • Color: Natural
  • Surface Treatment: Shot Peening /Heat Treatment/Plating/Lubrication
  • Accuracy: High Precision Roller Chain
  • Quality: Durable Roller Chain
  • Interchangeability: Directly Interchangeable With Other Brands
  • +86 15336786278
    jake@hxstdrive.com
    • Product Introduction

    Product Introduction




    About #120 A1 Attachment Roller Chain


    #120 A1 attachment roller chain is manufactured in accordance with ANSI B29.1 standard. Equipped with standard A1 one-side bent attachments, it enables easy installation of conveying fixtures, trays and carrying components. Every pin, bushing and roller is heat-treated to achieve high tensile strength, excellent wear resistance and low chain elongation during continuous operation.

    This chain is widely used in packaging machines, automated assembly lines, agricultural conveyors and general material handling equipment. Both riveted and cottered connecting ends are available for selection. Rigorous quality control ensures steady running performance and extended service life for various conveying and transporting working conditions.

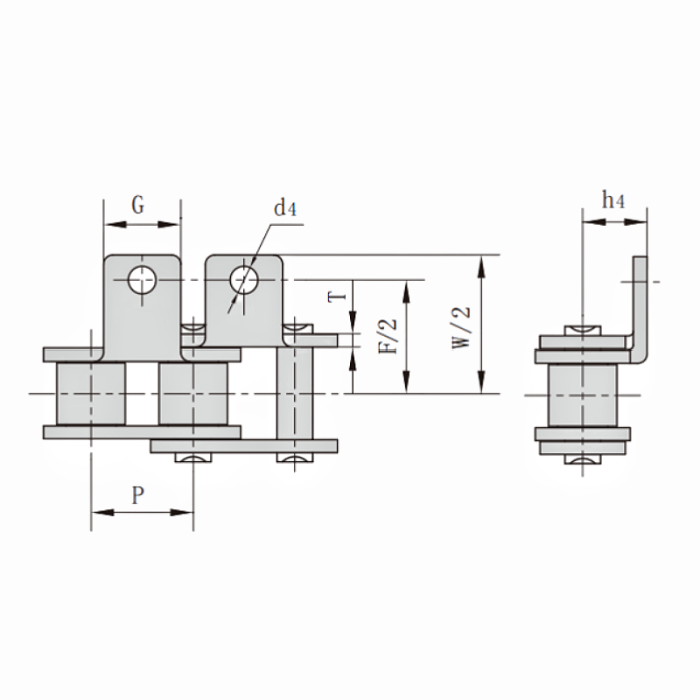

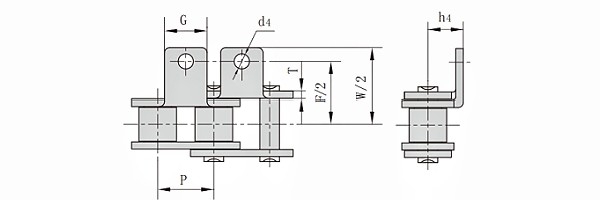

    ANSI #120 A1 Attachment Roller Chain Dimension





  • Pitch (P): 38.1mm
  • Attachment Dimension (G): 28.6mm
  • Attachment Dimension (F): 76.2mm
  • Attachment Dimension (W): 108.5mm
  • Attachment Dimension (h4): 23mm
  • Attachment Dimension (d4): 9.8mm
  • Link Plate Thickness (T): 4.8mm
