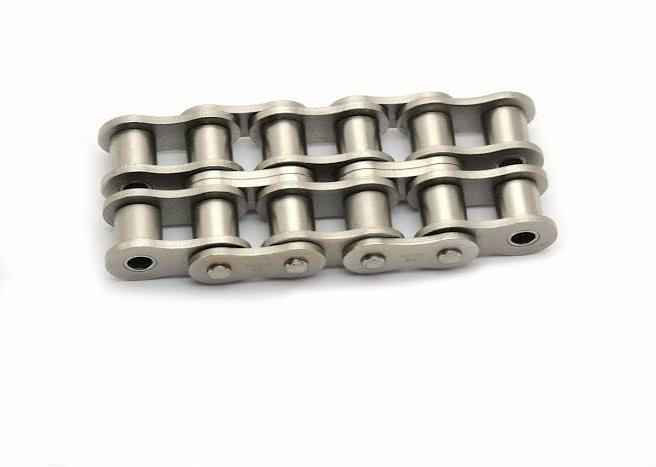

#100SS-2 double-strand stainless steel roller chain follows ANSI B29.1 specifications. Constructed from high-grade stainless steel, this chain boasts outstanding rust, acid and alkali resistance, adapting perfectly to damp, humid and corrosive working environments. Each component is precision machined for smooth rotation, low friction and consistent power transmission with minimal elongation.
It is widely applied in food processing, pharmaceutical machinery, chemical conveyors and marine transmission equipment. Both riveted and cottered end designs are optional. Rigorous quality control delivers stable performance, reliable durability and extended service life for long-term operation in harsh corrosive conditions.

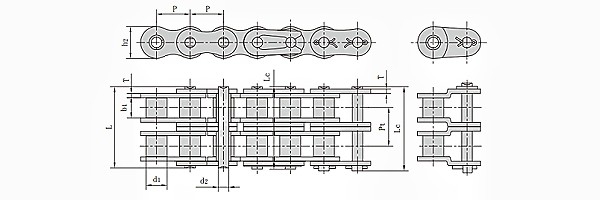

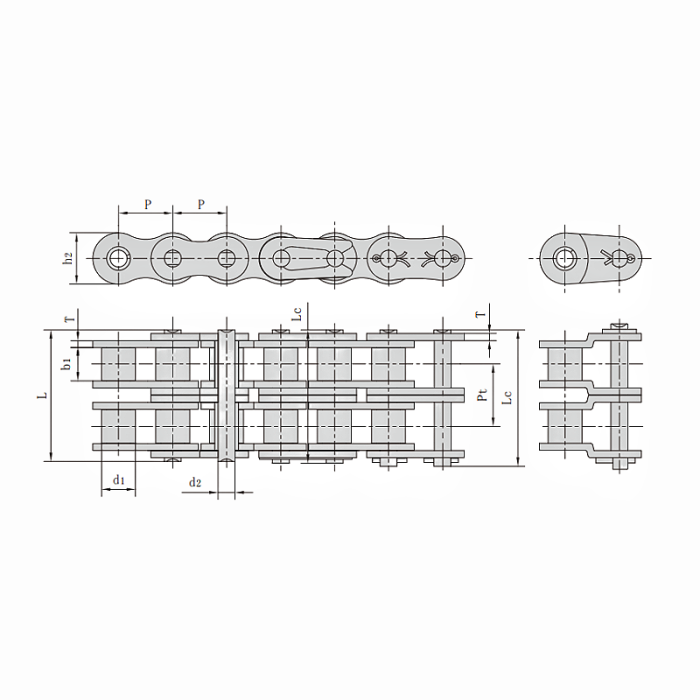

ANSI #120SS-2 Stainless Steel Roller Chain Dimension
Pitch (P): 38.1mm
Roller diameter : 22.23mm
Width between inner plates (b1): 25.22mm
Pin diameter (d2): 11.1mm
Pin length (L): 95.8mm
Pin length (Lc): 99.7mm
Inner Plate depth (h2): 35.7mm
Plate thickness (T): 4.8mm
Transverse pitch (Pt): 45.44mm
