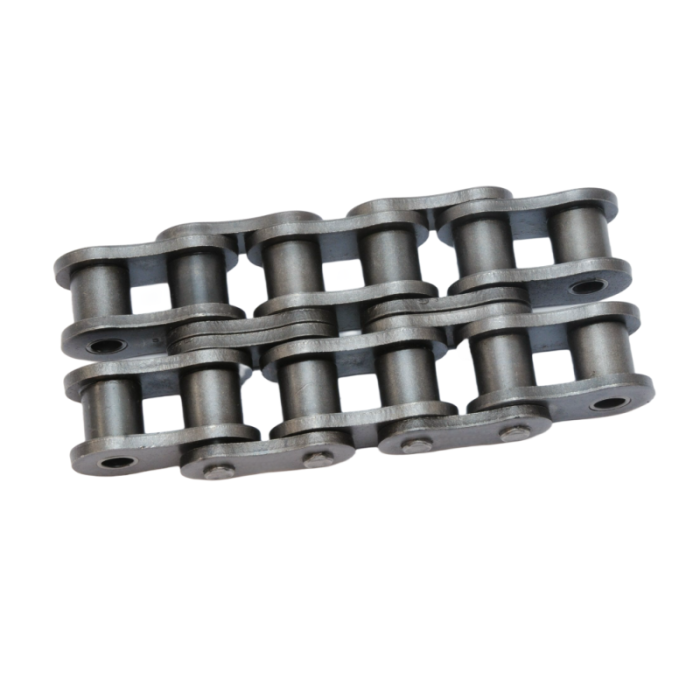

About #120H-2 Heavy Duty Roller Chain
#120H-2 double-strand heavy duty roller chain complies with ANSI B29.1 standard. It adopts thicker link plates than standard #120-2 chain, with all pins, bushings and rollers precision heat-treated for higher tensile strength, anti-fatigue and shock resistance. Solid bushing & roller structure effectively restrain chain elongation and deliver excellent wear resistance under heavy torque and frequent impact loads.
Designed for high-load industrial transmission, it suits mining equipment, construction machinery, heavy conveyors and large agricultural drives. Available in riveted or cottered end styles. Strict production inspection ensures stable operation, extended service life and lower maintenance cost for harsh working conditions.

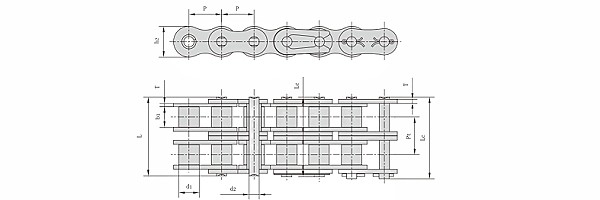

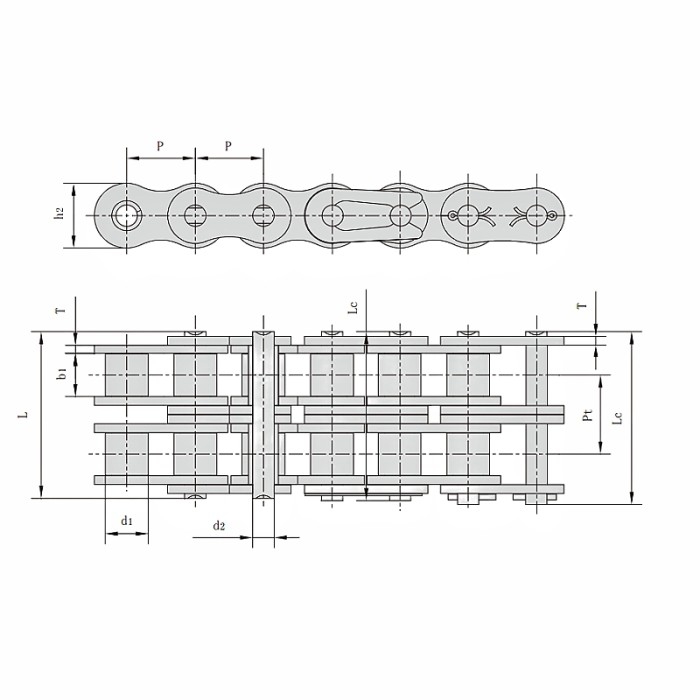

ANSI #120H-2 Heavy Duty Roller Chains Dimension
Pitch (P): 38.1mm
Roller diameter (d1): 22.23mm
Width between inner plates (b1): 25.22mm
Pin diameter (d2): 11.1mm
Pin length (L): 102.4mm
Pin length (Lc): 106.4mm
Inner plate depth (h2): 35.7mm
Plate thickness (T): 5.6mm
Transverse pitch (Pt): 48.87mm
