ANSI #100 Roller Chain With A1 Attachment

  • Categories: Roller Chain With A1 Attachments
  • Brand: HXST-Drive
  • Model: ANSI 100-A1 Roller Chain
  • Material: Carbon Steel
  • Color: Natural
  • Surface Treatment: Shot Peening /Heat Treatment/Plating/Lubrication
  • Accuracy: High Precision Roller Chain
  • Quality: Durable Roller Chain
  • Interchangeability: Directly Interchangeable With Other Brands
  • +86 15336786278
    jake@hxstdrive.com
    • Product Introduction

    Product Introduction


    裁剪旋转 (4)_compressed.jpeg

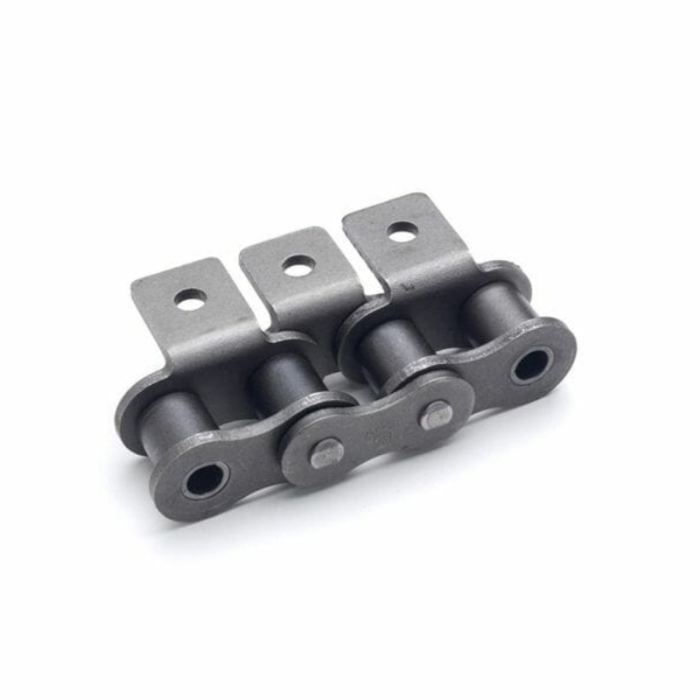

    About #100 A1 Attachment Roller Chain


     #100 A1 attachment roller chain is produced in accordance with ANSI standards. Equipped with standard A1 side attachments at specified pitches, it is widely used for material conveying, lifting and feeding applications. Precision machining guarantees accurate pitch, stable tensile strength and smooth, low-noise operation under continuous loads.

    All chain parts are heat-treated for strong wear resistance and long service life. We provide plain carbon steel and stainless steel options to adapt to different working environments. Cottered and cotterless configurations are available for selection. Featuring solid structure, convenient installation and flexible layout, this attachment chain is a dependable solution for packaging, agricultural, logistics and automated conveying equipment.

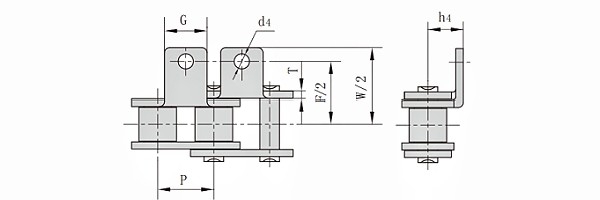

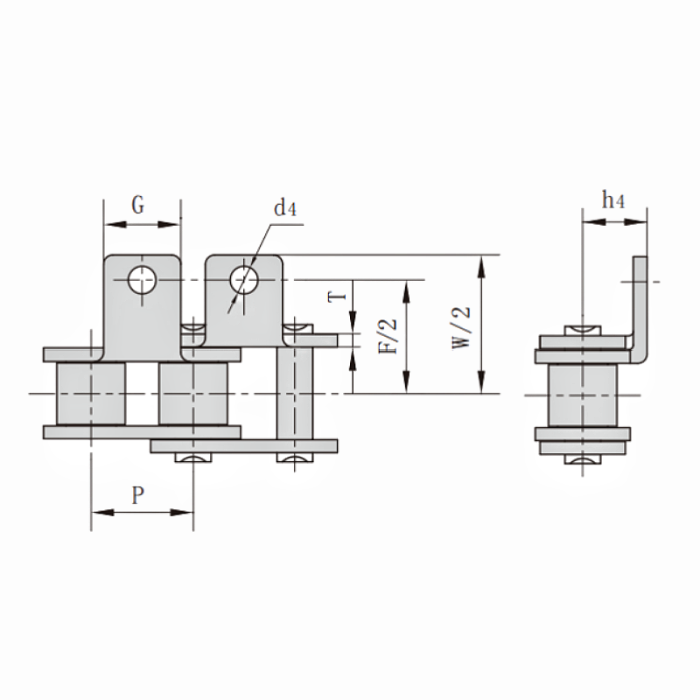

    ANSI #100 A1 Attachment Roller Chain Dimension




  • Pitch (P): 31.75mm
  • Attachment Dimension (G): 25.4mm
  • Attachment Dimension (F): 63.5mm
  • Attachment Dimension (W): 89.8mm
  • Attachment Dimension (h4): 19.8mm
  • Attachment Dimension (d4): 9.2mm
  • Link Plate Thickness (T): 4mm
