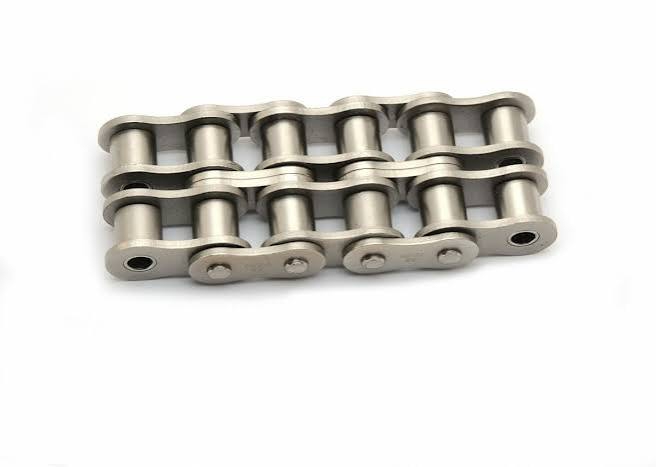

#100SS-2 double-strand stainless steel roller chain strictly conforms to ANSI industry standards, fabricated from premium stainless steel with superior rust, oxidation and mild chemical corrosion resistance. Precision machining ensures precise pitch matching, stable high tensile strength and smooth low-noise operation for heavy-load power transmission.
Toughened components deliver excellent wear resistance for long-term continuous running. Ideal for food machinery, marine facilities, chemical conveying and damp corrosive working conditions. Both cottered and cotterless designs are available, plus custom attachments upon request. Robust structure, simple assembly and dependable performance make it an ideal heavy-duty corrosion-resistant transmission solution.

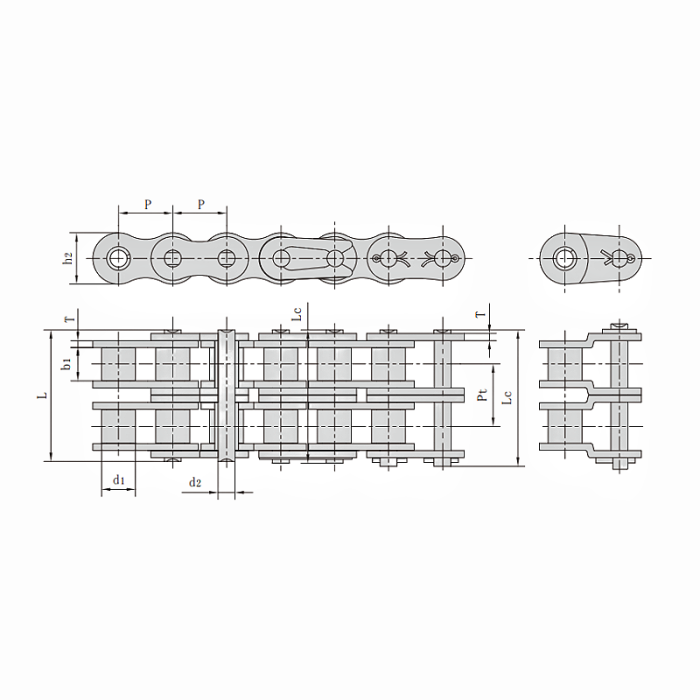

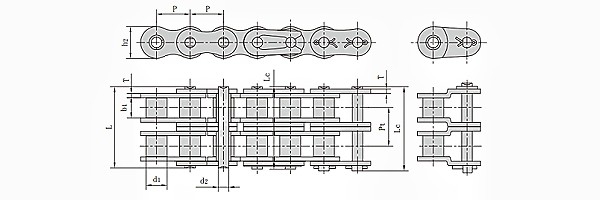

ANSI #100SS-2 Stainless Steel Roller Chain Dimension
Pitch (P): 25.4mm
Roller diameter : 15.88mm
Width between inner plates (b1): 15.75mm
Pin diameter (d2): 7.92mm
Pin length (L): 91.7mm
Pin length (Lc): 93.6mm
Inner Plate depth (h2): 24mm
Plate thickness (T): 3.25mm
Transverse pitch (Pt): 29.29mm
