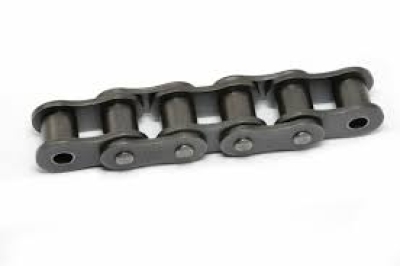

#100-1 single-strand roller chain is manufactured in full compliance with ANSI standard. Adopting premium alloy steel and precise heat treatment technology, it features high tensile strength, outstanding wear resistance and stable fatigue performance under heavy working loads.
Fine machining ensures smooth meshing, low running noise and long service life. Widely used for power transmission and material conveying in heavy machinery, agricultural equipment, industrial conveyors and processing production lines. Custom cut lengths, anti-rust surface treatment and various attachment options are available to fit your specific equipment requirements.

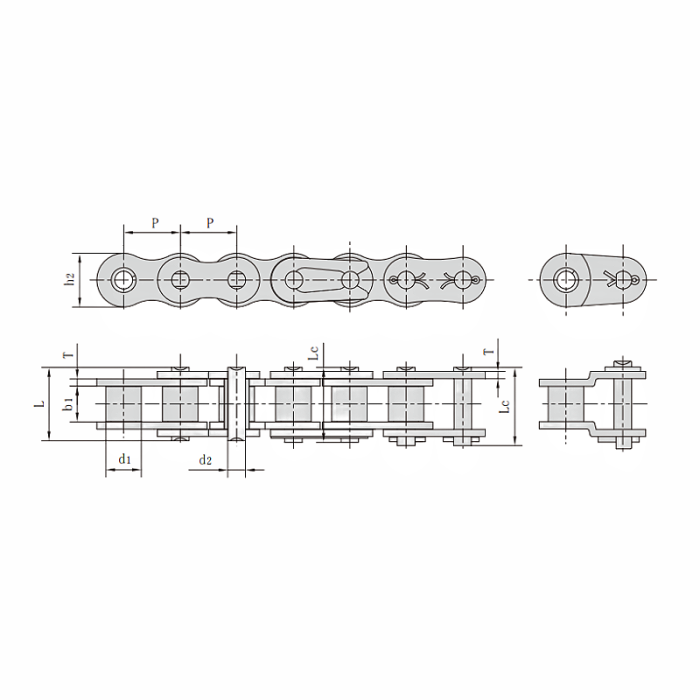

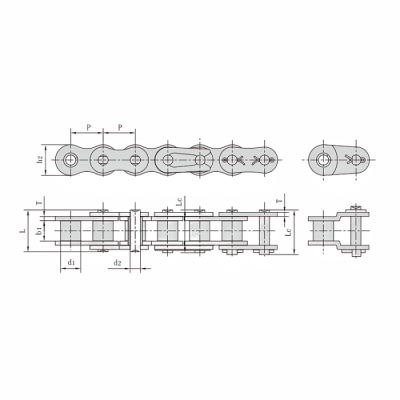

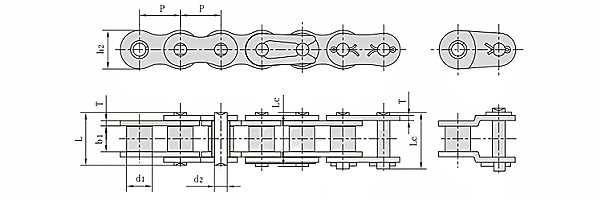

ANSI #100-1 Roller Chains Dimension
Pitch (p): 31.75mm
Roller Diameter (d1): 19.05mm
Width between inner plates (b1): 18.9mm
Pin diameter (d2): 9.53mm
Pin length (L): 40.4mm
Pin length (Lc): 44.7mm
Inner plate depth (h2): 30mm
Plate thickness (T): 4mm
