ANSI #80 Roller Chain With K1 Attachment

  • Categories: Roller Chain With K1 Attachments
  • Brand: HXST-Drive
  • Model: ANSI 80-K1 Roller Chain
  • Material: Carbon Steel
  • Color: Natural
  • Surface Treatment: Shot Peening /Heat Treatment/Plating/Lubrication
  • Accuracy: High Precision Roller Chain
  • Quality: Durable Roller Chain
  • Interchangeability: Directly Interchangeable With Other Brands
  • +86 15336786278
    jake@hxstdrive.com
    • Product Introduction

    Product Introduction


    裁剪旋转 (2)_compressed.jpeg

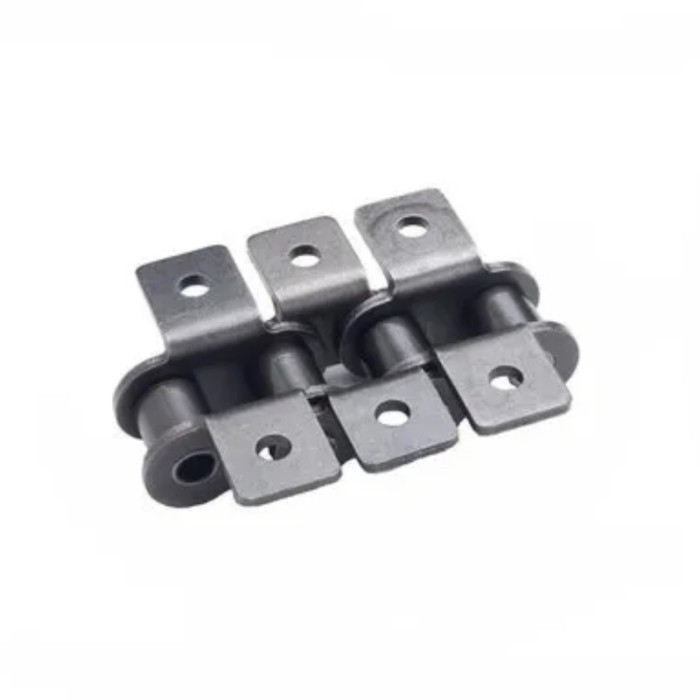

    About #80 K1 Attachment Roller Chain


    #80 K1 attachment roller chain conforms to ANSI #80 specifications. Equipped with K1 bent attachments on chain links, it allows easy installation of conveying pallets, push plates and positioning fittings. Subject to strict heat treatment, the chain features high tensile strength, excellent wear resistance and smooth stable operation under continuous load.

    Perfect for automated conveying lines, packaging machinery, agricultural equipment and material transportation systems. We support customized attachment pitch, chain length and surface treatment options to satisfy diverse power transmission and conveying application demands.

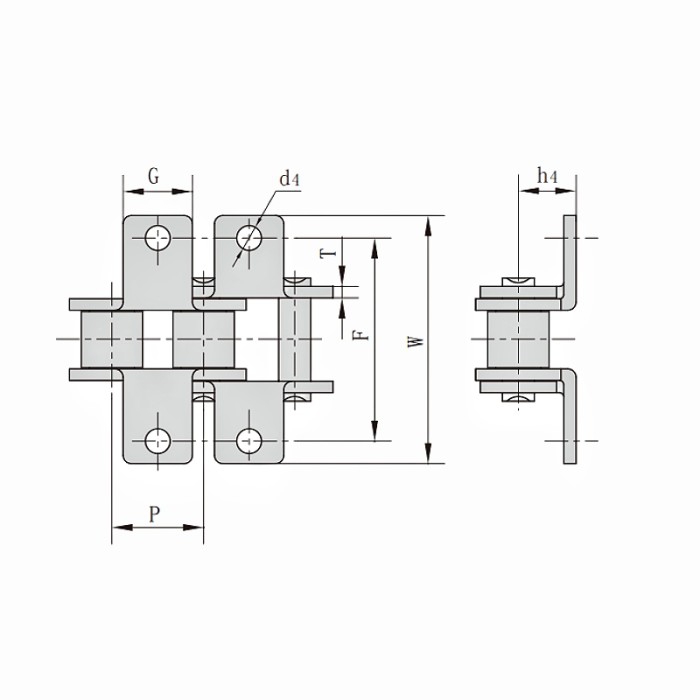

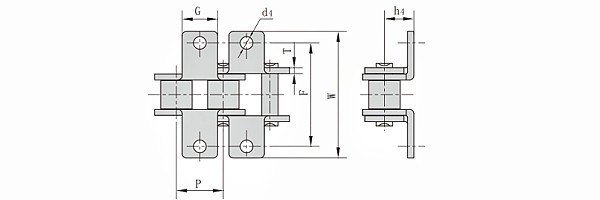

    ANSI #80 K1 Attachment Roller Chain Dimension





  • Pitch (P): 25.4mm
  • Attachment Dimension (G): 19.1mm
  • Attachment Dimension (F): 50.8mm
  • Attachment Dimension (W): 64.8mm
  • Attachment Dimension (h4): 15.9mm
  • Attachment Dimension (d4): 6.8mm
  • Link Plate Thickness (T): 3.25mm
