ANSI #80 Roller Chain With A1 Attachment

  • Categories: Roller Chain With A1 Attachments
  • Brand: HXST-Drive
  • Model: ANSI 80-A1 Roller Chain
  • Material: Carbon Steel
  • Color: Natural
  • Surface Treatment: Shot Peening /Heat Treatment/Plating/Lubrication
  • Accuracy: High Precision Roller Chain
  • Quality: Durable Roller Chain
  • Interchangeability: Directly Interchangeable With Other Brands
  • +86 15336786278
    jake@hxstdrive.com
    • Product Introduction

    Product Introduction


    裁剪旋转 (1)_compressed.jpeg

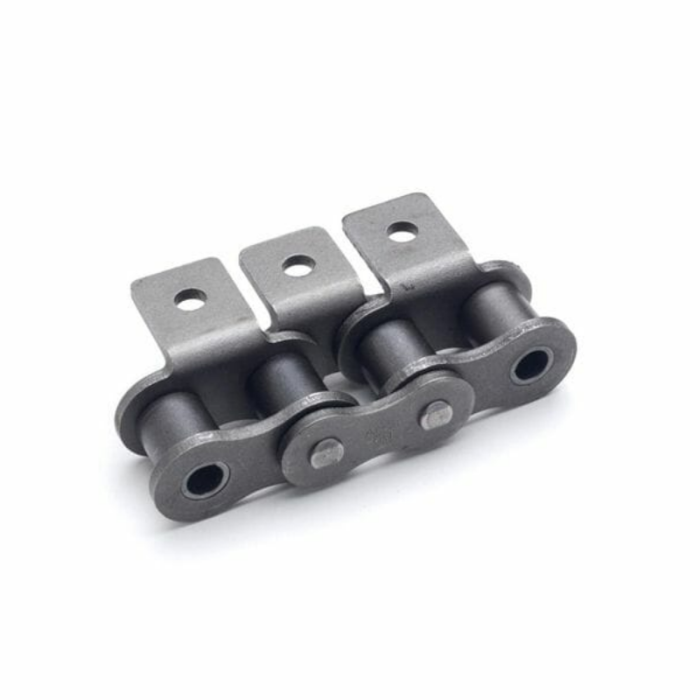

    About #80 A1 Attachment Roller Chain


    #80 A1 attachment roller chain complies with ANSI #80 industry standard. Equipped with standard A1 side attachments on designated links, it enables convenient mounting of slats, buckets, fixtures and conveying accessories.

    Manufactured with precise heat treatment, this chain boasts reliable tensile strength, stable operation and good wear resistance for long-term running. It is widely applied in packaging conveyors, material handling, agricultural machinery and automated assembly lines. Custom attachment spacing, surface treatments and chain lengths can be offered to meet your customized transmission and conveying requirements.

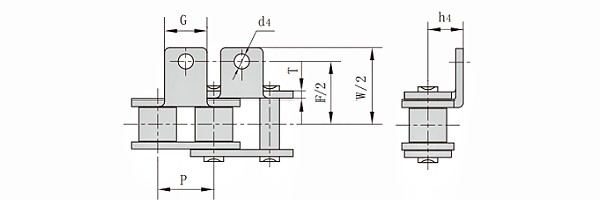

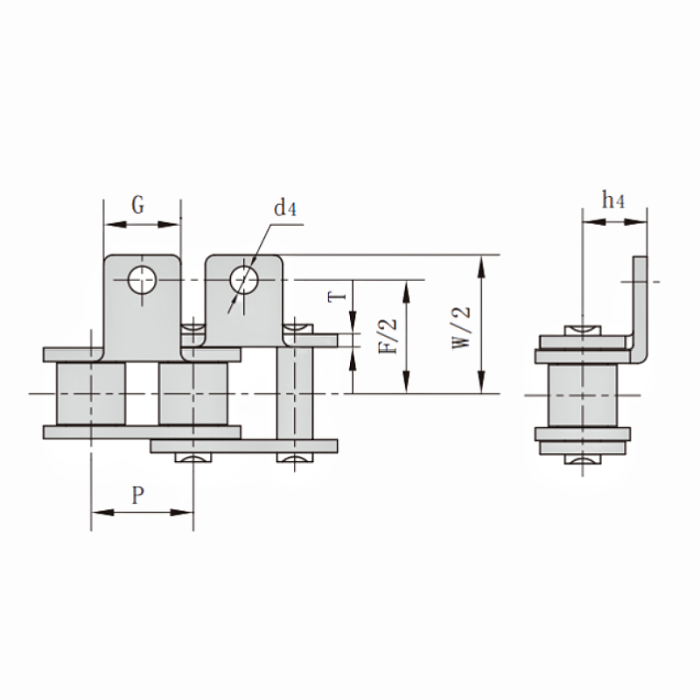

    ANSI #80 A1 Attachment Roller Chain Dimension




  • Pitch (P): 25.4mm
  • Attachment Dimension (G): 19.1mm
  • Attachment Dimension (F): 50.8mm
  • Attachment Dimension (W): 64.8mm
  • Attachment Dimension (h4): 15.9mm
  • Attachment Dimension (d4): 6.8mm
  • Link Plate Thickness (T): 3.25mm
