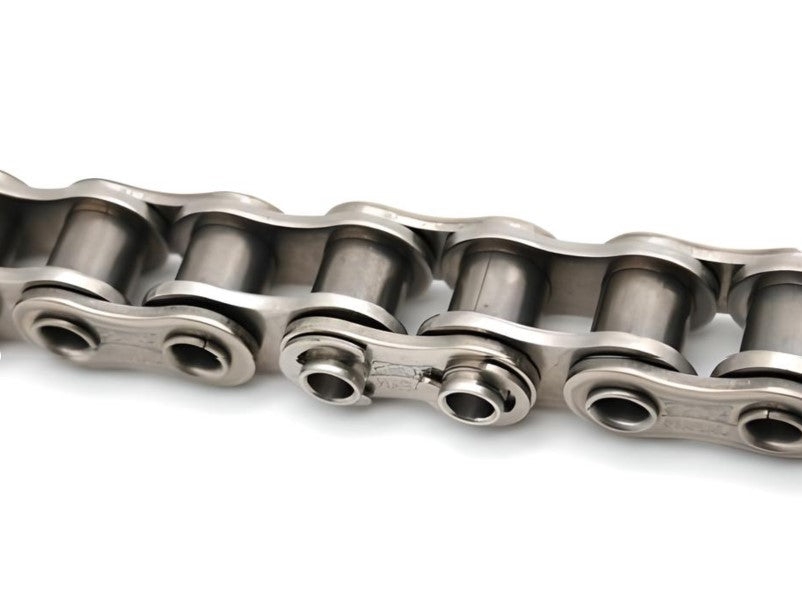

#80HPSS hollow pin roller chain is crafted from premium stainless steel, featuring special hollow pin structure for easy attachment installation and quick assembly of auxiliary fixtures. Designed to ANSI #80 standard, it delivers stable tensile strength, outstanding corrosion resistance against moisture, acid and weak alkali environments.
Ideal for food processing, packaging, pharmaceutical and wet-condition conveying equipment. Its precise machining ensures smooth running, low friction and long service life. Custom attachments and cut-to-length services are available to match your specific transmission and conveying demands.
ANSI #80HPSS Hollow Pin Roller Chain Dimension
Pitch (P): 25.4mm
Roller diameter (d1): 15.88mm
Width between inner plates (b1): 15.75mm
Pin diameter (d2): 11.4mm
Pin diameter (d3): 8.05mm
Pin length (L): 33.8mm
Pin length (Lc): 26.8mm
Inner plate depth (h2): 24mm
Plate thickness (T): 3.25mm
