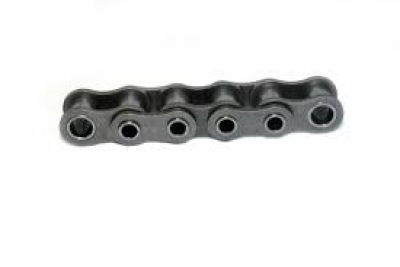

#80H heavy-duty hollow pin roller chain follows ANSI #80 specification with reinforced construction for greater tensile strength and heavy-load operation. Its unique hollow pin design allows easy mounting of cross rods, attachments and side fixtures, convenient for assembling conveying slats, baffles and special transport accessories.
Made of high-quality carbon steel with precise heat treatment, this chain boasts excellent wear resistance and stable running performance under long-term high-load working conditions. Suitable for packaging conveyors, agricultural machinery, material transporting equipment and automated production lines. Custom lengths and tailored attachments are available to fit your specific equipment needs.

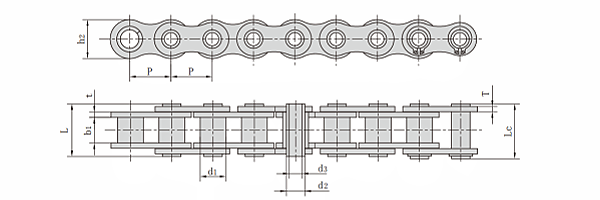

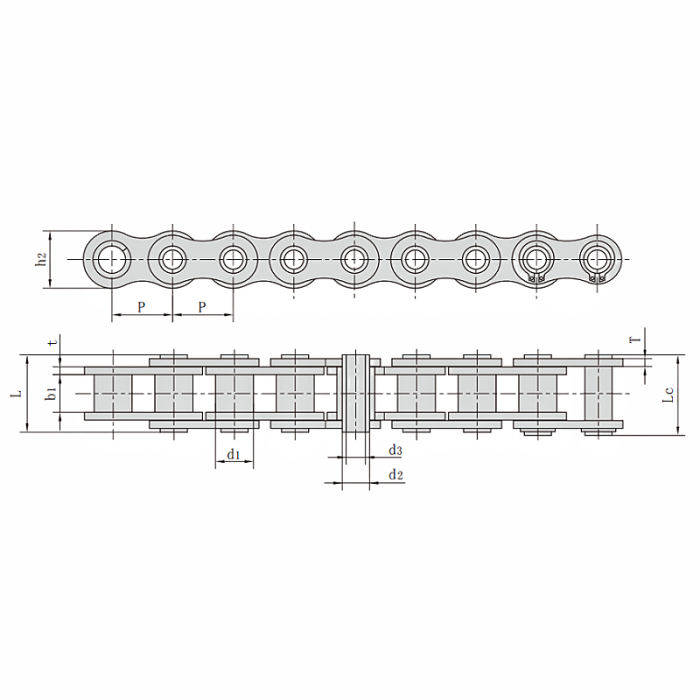

ANSI #80 Hollow Pin Roller Chains Dimension
Pitch (P): 25.4mm
Roller diameter (d1): 15.88mm
Width between inner plates (b1): 15.75mm
Pin diameter (d2): 11.4mm
Pin diameter (d3): 8.05mm
Pin length (L): 32.5mm
Pin length (Lc): 33.8mm
Inner plate depth (h2): 24mm
Plate thickness (T): 3.25mm
