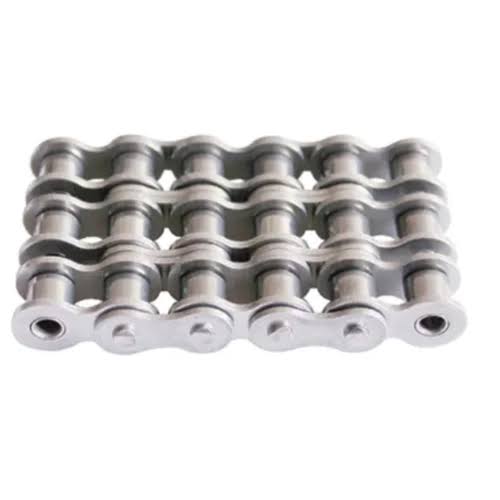

#80SS-3 triple-strand stainless steel roller chain complies with ANSI #80 standard. Constructed from high-grade stainless steel, it features outstanding rust, acid and salt corrosion resistance, perfectly suited for food processing, chemical, marine and humid working conditions.
Its three-row structure provides superior tensile strength and heavy load-bearing capacity for high-torque power transmission and conveying applications. Precision machined pins, bushings and rollers guarantee smooth running, low wear and extended service lifespan. We supply standard cut lengths, cottered or cotterless configurations, with customized sizes available to match your equipment installation requirements.

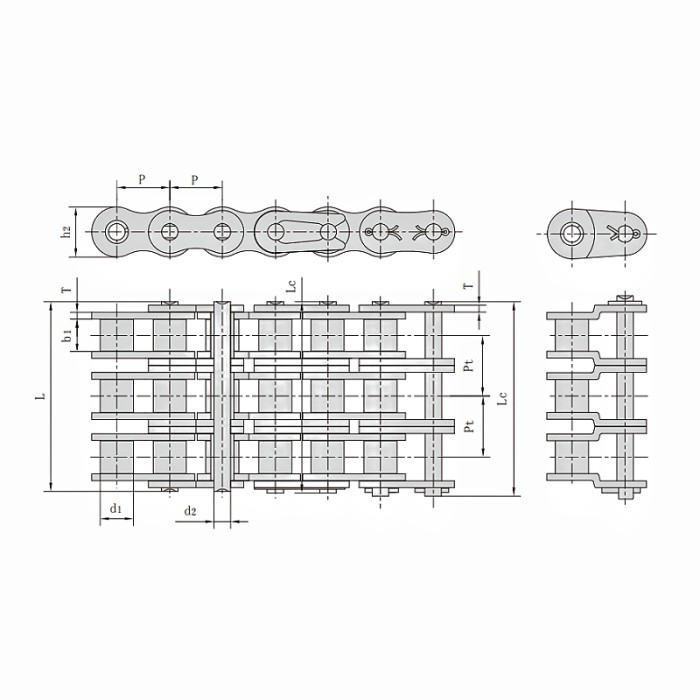

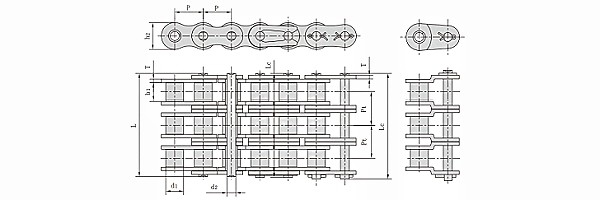

ANSI #80SS-3 Stainless Steel Roller Chain Dimension
Pitch (P): 25.4mm
Roller diameter : 15.88mm
Width between inner plates (b1): 15.75mm
Pin diameter (d2): 7.92mm
Pin length (L): 91.7mm
Pin length (Lc): 93.6mm
Inner Plate depth (h2): 24mm
Plate thickness (T): 3.25mm
Transverse pitch (Pt): 29.29mm
