ANSI #60 Roller Chain With A1 Attachment

  • Categories: Roller Chain With A1 Attachments
  • Brand: HXST-Drive
  • Model: ANSI 60-A1 Roller Chain
  • Material: Carbon Steel
  • Color: Natural
  • Surface Treatment: Shot Peening /Heat Treatment/Plating/Lubrication
  • Accuracy: High Precision Roller Chain
  • Quality: Durable Roller Chain
  • Interchangeability: Directly Interchangeable With Other Brands
  • +86 15336786278
    jake@hxstdrive.com
    • Product Introduction

    Product Introduction

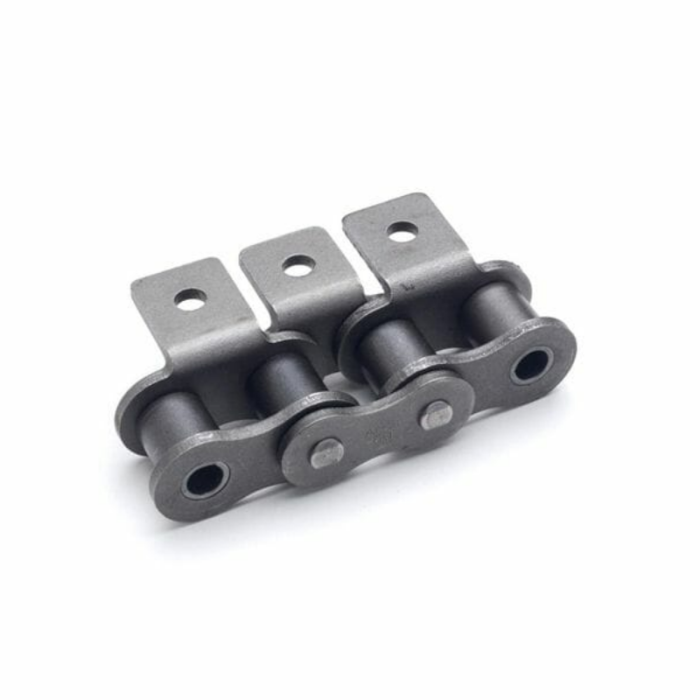

    About #60 A1 Attachment Roller Chain


    Our #60 A1 attachment roller chain complies with ANSI standard specifications. Equipped with integrated A1 side attachments, it offers stable mounting positions for fixtures, trays and conveying accessories. Manufactured from high-strength steel with professional heat treatment, this chain delivers outstanding tensile strength, wear resistance and long service life under continuous operation.

    It matches perfectly with standard #60 sprockets for easy replacement and assembly. Ideal for automated conveying lines, packaging equipment, material lifting and general industrial transportation systems. Surface treatment options and stainless steel variants can be customized to meet special working environment demands.

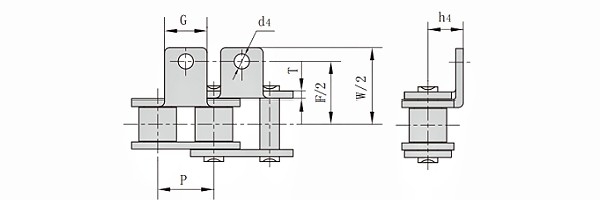

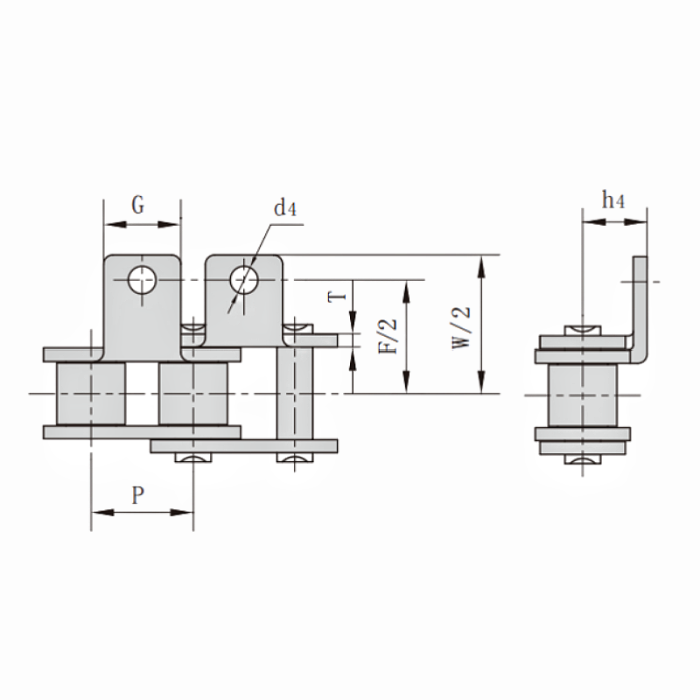

    ANSI #60 A1 Attachment Roller Chain Dimension




  • Pitch (P): 19.05mm
  • Attachment Dimension (G): 15.9mm
  • Attachment Dimension (F): 38.1mm
  • Attachment Dimension (W): 55.6mm
  • Attachment Dimension (h4): 11.9mm
  • Attachment Dimension (d4): 5.5mm
  • Link Plate Thickness (T): 2.42mm
