About #60HPSS  Hollow Pin Roller Chains

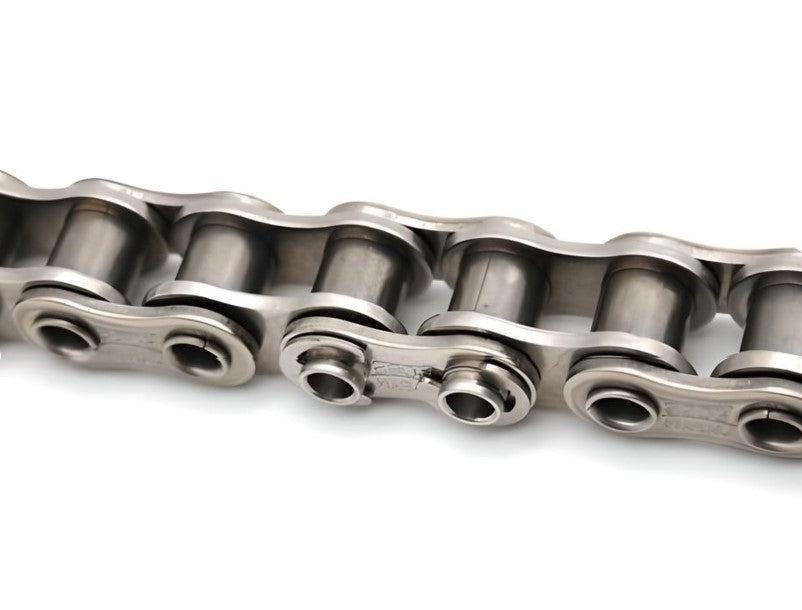

#50HPSS stainless steel hollow pin roller chain complies with ANSI specifications, specially manufactured from high-grade stainless steel for superior corrosion resistance. The hollow pin structure allows quick fitting of attachments without splitting the chain, boosting assembly efficiency for conveying, food processing, pharmaceutical and marine equipment.

Precision machining and consistent heat treatment ensure stable tensile strength, outstanding wear resistance and reliable long-term running in humid, acidic and wash-down working conditions. Fully interchangeable with standard #50 series chain sprockets, it supports customized cutting lengths as required. Ideal for sanitary and harsh corrosive industrial transmission applications with strict hygiene requirements.

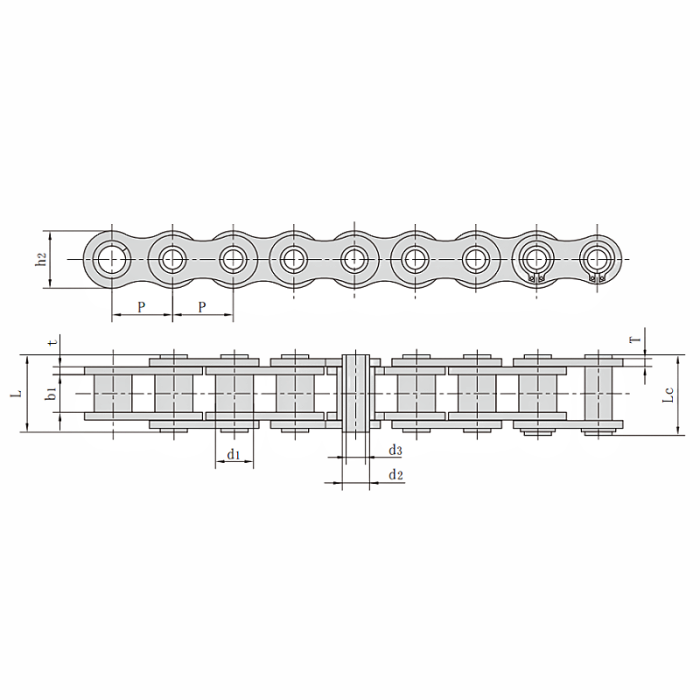

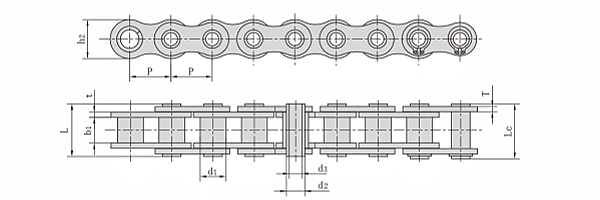

ANSI #60HPSS Hollow Pin Roller Chain Dimension

Pitch (P): 19.05mm

Roller diameter (d1): 11.91mm

Width between inner plates (b1): 12.7mm

Pin diameter (d2): 8.31mm

Pin diameter (d3): 6mm

Pin length (L): 25.8mm

Pin length (Lc): 26.8mm

Inner plate depth (h2): 18mm

Plate thickness (T): 2.42mm
