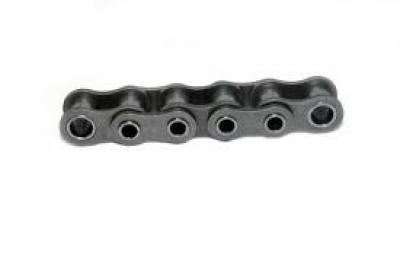

About #60H Hollow Pin Roller Chain
#60H hollow pin roller chain is an extra heavy-duty variant of standard #60 roller chain, engineered for higher load capacity and fatigue resistance. Its hollow pin design enables convenient attachment installation without chain disassembly, greatly simplifying assembly for conveyors, packaging machinery and agricultural equipment.
Made of premium carbon steel with precise heat treatment, it delivers strong tensile strength, excellent wear resistance and stable long-term operation. Strictly compliant with ANSI industry standards, each component undergoes rigorous dimensional inspection for consistent interchangeability. Surface anti-corrosion treatment effectively resists rust in harsh working environments. Custom lengths and stainless steel versions are available upon request to match diverse industrial transmission demands.

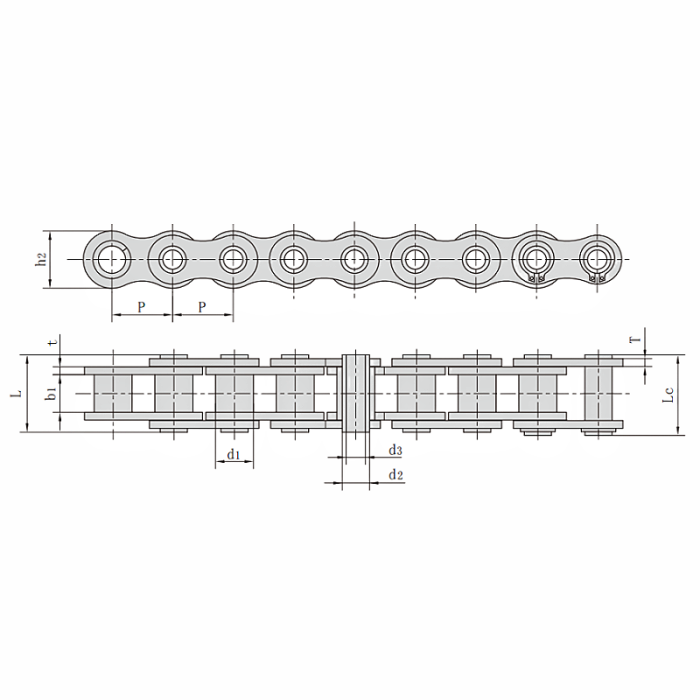

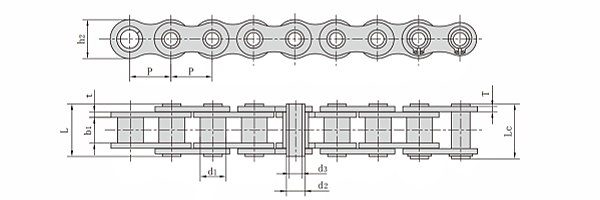

ANSI #60 Hollow Pin Roller Chains Dimension
Pitch (P): 19.05mm
Roller diameter (d1): 11.91mm
Width between inner plates (b1): 12.57mm
Pin diameter (d2): 8.31mm
Pin diameter (d3): 6mm
Pin length (L): 25.8mm
Pin length (Lc): 26.8mm
Inner plate depth (h2): 18mm
Plate thickness (T): 2.42mm
