ANSI #60SS-3 Stainless Steel Roller Chains

  • Categories: Triple Strand Roller Chains
  • Brand: HXST-Drive
  • Model: ANSI 60SS-3 Roller Chain
  • Material: Stainless Steel
  • Color: Silver
  • Accuracy: High Precision Roller Chain
  • Quality: Durable Roller Chain
  • Interchangeability: Directly Interchangeable With Other Brands
  • +86 15336786278
    jake@hxstdrive.com
    • Product Introduction

    Product Introduction


    裁剪旋转 (1)_compressed.jpeg

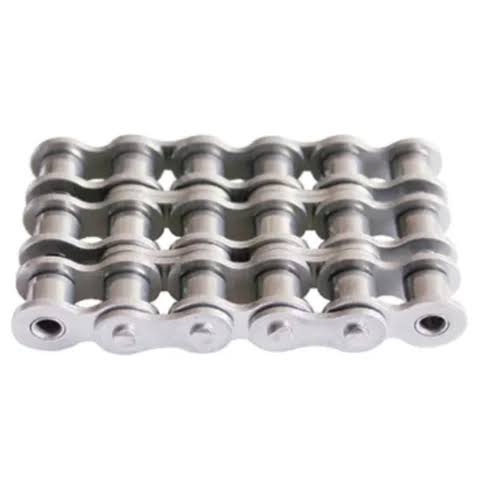

    About #60SS-3 Stainless Steel Roller Chain

    #60SS-3 triple-strand stainless steel roller chain is fabricated from high-grade stainless steel with outstanding rust, acid and corrosion resistance, perfectly suited for wet, salty and chemically aggressive working conditions.


    Precision machining guarantees strict dimensional accuracy, smooth running, low noise and reliable continuous operation. Its three-row design provides superior tensile strength and heavy-load bearing capacity compared to single or double-strand counterparts.


    Widely applied in food processing, pharmaceutical conveying, marine equipment, chemical industry and outdoor corrosive transmission systems. Custom cutting lengths, connecting links and offset links are supplied to fit various assembly requirements.

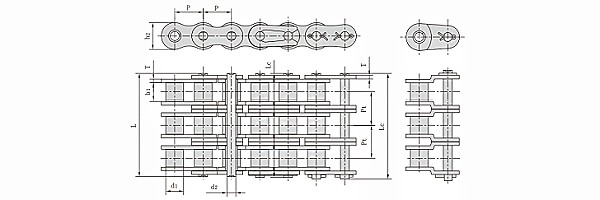

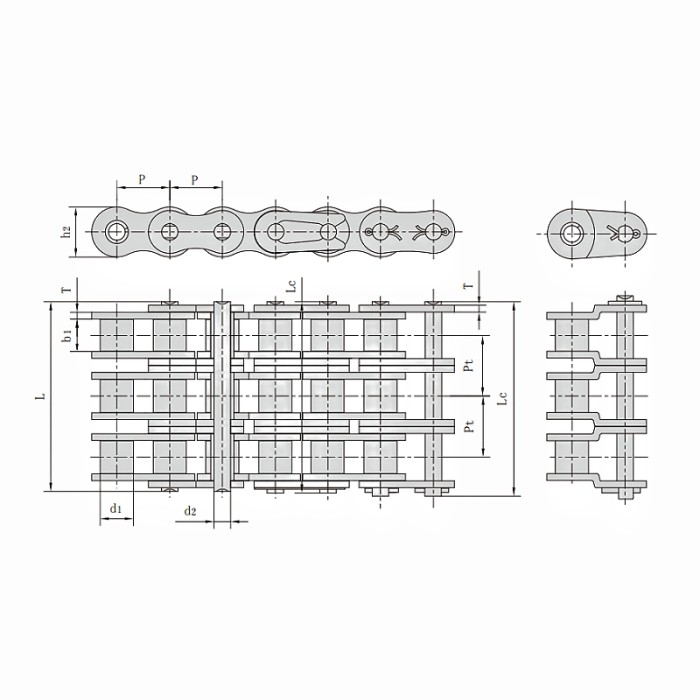

    ANSI #60SS-3 Stainless Steel Roller Chain Dimension


  • Pitch (P): 19.05mm
  • Roller diameter : 11.91mm
  • Width between inner plates (b1): 12.57mm
  • Pin diameter (d2): 5.94mm
  • Pin length (L): 71.5mm
  • Pin length (Lc): 73.3mm
  • Inner Plate depth (h2): 18mm
  • Plate thickness (T): 2.42mm
  • Transverse pitch (Pt): 22.78mm
