ANSI #60SS-2 Stainless Steel Roller Chains

  • Categories: Double Strand Roller Chains
  • Brand: HXST-Drive
  • Model: ANSI 60SS-2 Roller Chain
  • Material: Stainless Steel
  • Color: Silver
  • Accuracy: High Precision Roller Chain
  • Quality: Durable Roller Chain
  • Interchangeability: Directly Interchangeable With Other Brands
  • +86 15336786278
    jake@hxstdrive.com
    • Product Introduction

    Product Introduction

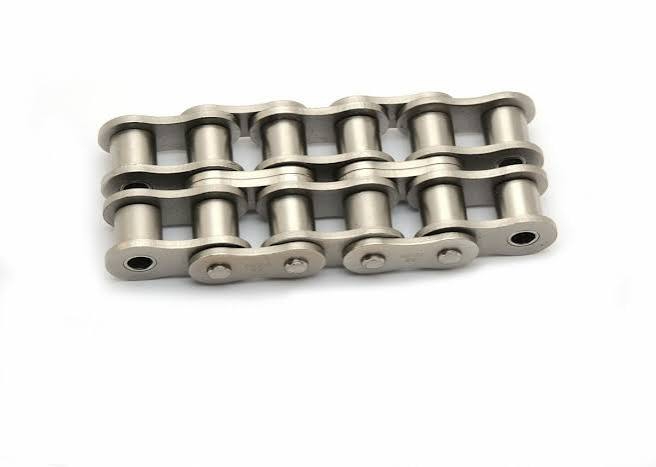

    About #60SS-2 Stainless Steel Roller Chain

    #60SS-2 double-strand stainless steel roller chain is made of premium stainless steel, featuring excellent corrosion, rust and chemical resistance for harsh humid, acidic and saline working environments.


    Precision-manufactured with tight dimensional tolerance, it ensures stable transmission, low noise, smooth operation and long service life under continuous load. Its double-row structure delivers higher tensile strength and greater load capacity than single-strand chains.


    Ideal for food processing, beverage equipment, marine machinery, pharmaceutical conveying and outdoor corrosion-prone drive systems. Custom lengths and connecting links are available to meet diverse installation demands.

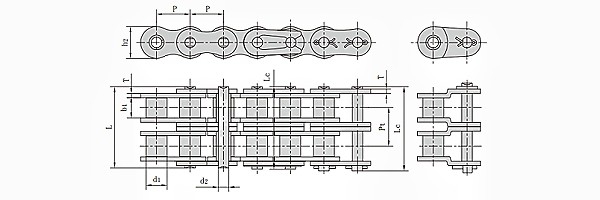

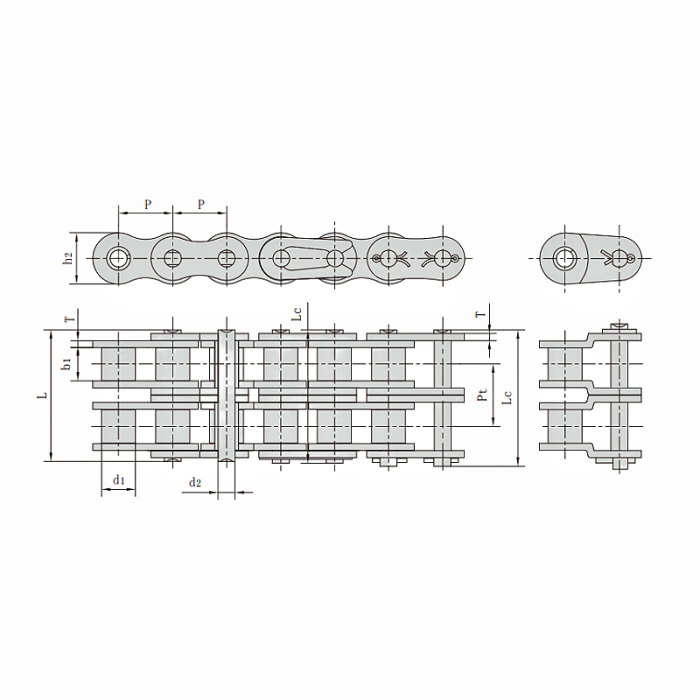

    ANSI #60SS-2 Stainless Steel Roller Chain Dimension



  • Pitch (P): 19.05mm
  • Roller diameter : 11.91mm
  • Width between inner plates (b1): 12.57mm
  • Pin diameter (d2): 5.94mm
  • Pin length (L): 48.8mm
  • Pin length (Lc): 50.5mm
  • Inner Plate depth (h2): 18mm
  • Plate thickness (T): 2.42mm
  • Transverse pitch (Pt): 22.78mm
