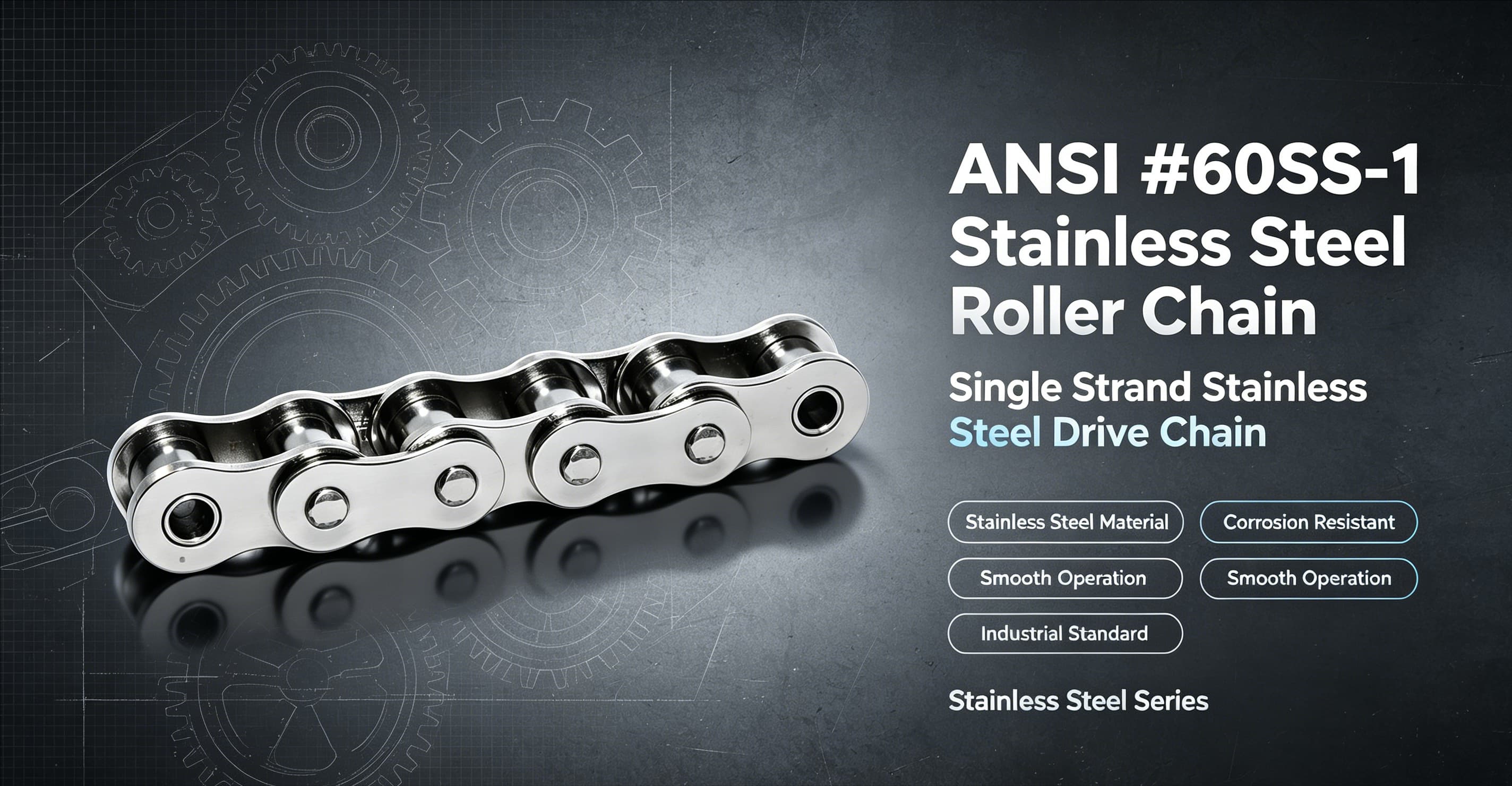

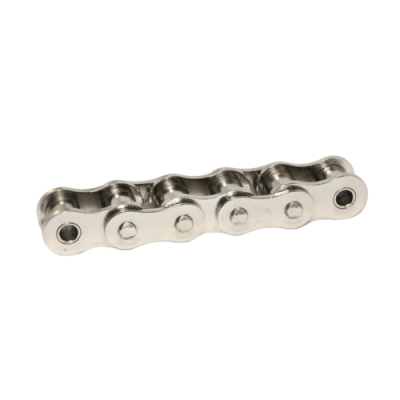

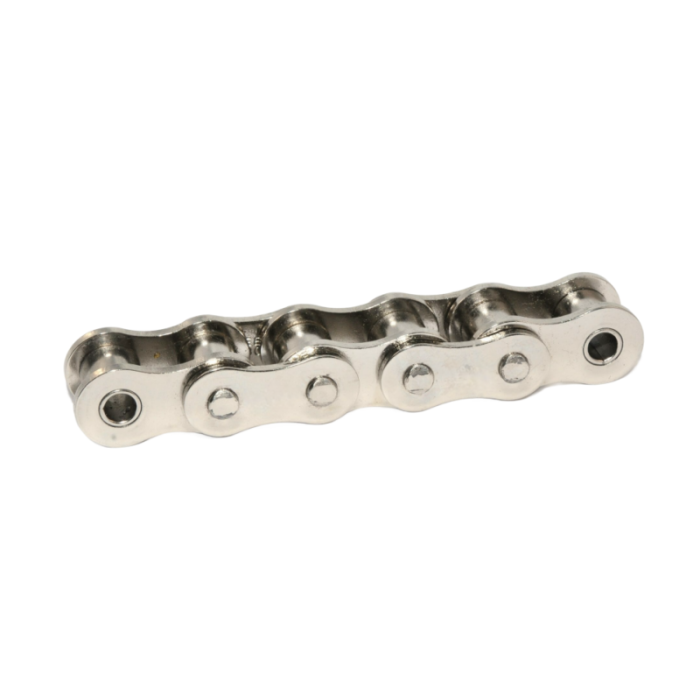

About #60SS Stainless Steel Roller Chain
ANSI #60SS stainless steel roller chain conforms to ANSI standard specifications, fully constructed from premium stainless steel for outstanding corrosion resistance against moisture, acid, alkali and oxidation.
It maintains stable tensile strength, excellent wear resistance and precise dimensional accuracy, ensuring smooth meshing with matching sprockets, low elongation and consistent long-term operation. Suitable for humid, food processing, chemical and marine harsh working environments where rust prevention is required.
Available with cottered or spring clip connecting links for flexible assembly and easy maintenance. Widely adopted in food machinery, packaging equipment, conveyor systems and sanitary transmission devices. Custom sizes and surface options are acceptable on request.
ANSI #60SS Stainless Steel Roller Chain Dimension
Pitch (P): 19.05mm
Roller diameter (d1): 11.91mm
Width between inner plates (b1) : 12.57mm
Pin diameter (d2): 5.94mm
Pin length (L): 25.9mm
Pin length (Lc): 27.7mm
Inner plate depth (h2): 18mm
Plate thickness (T): 2.42mm
