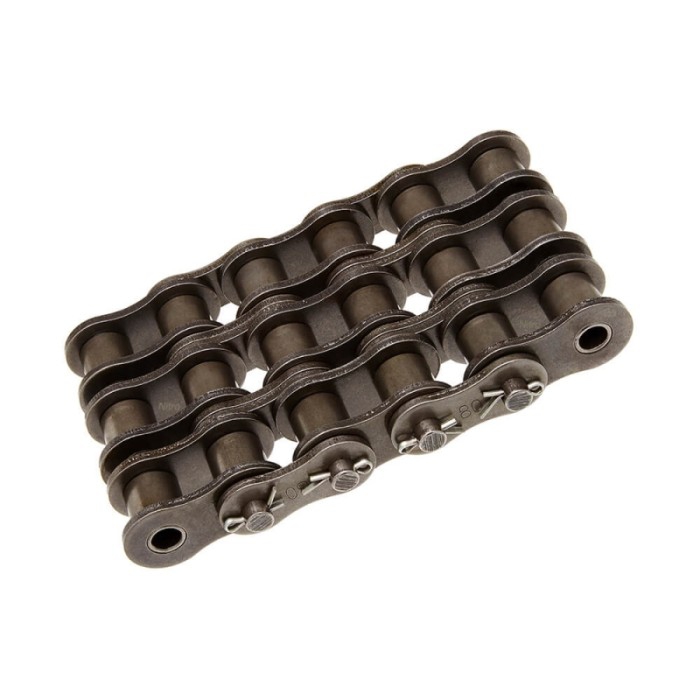

#60-3 triple-strand cottered roller chain is manufactured to ANSI specifications. Featuring three parallel chain strands, it delivers remarkably higher tensile strength and heavy load capacity versus single or double-row #60 chains, perfect for high-torque heavy-duty power transmission.
Equipped with cotter pin locking structure, it avoids pin loosening in long-term operation, enabling simple installation, disassembly and routine maintenance. Precision production ensures smooth meshing with matched triple sprockets, stable operation and low stretch rate.
Commonly used for conveyors, agricultural machinery, industrial transport equipment and heavy transmission systems. Stainless steel options and customized surface treatments can be provided on request.

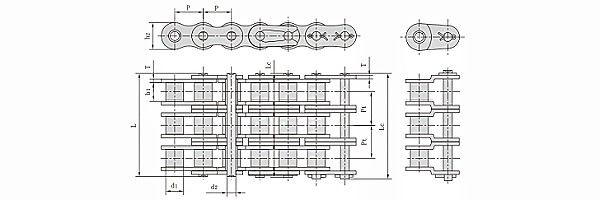

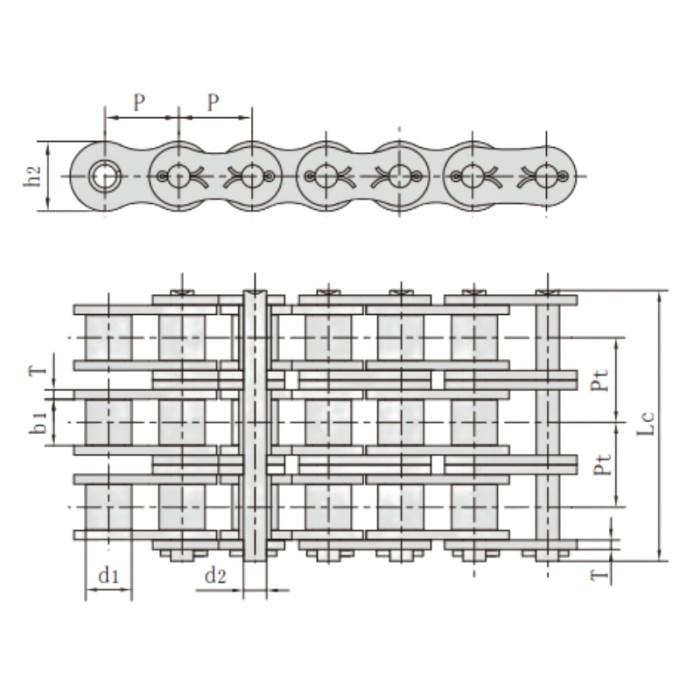

ANSI #60-3 Cottered Roller Chains Dimension
Pitch (P): 19.05mm
Roller diameter (d1): 11.91mm
Width between inner plates (b1): 12.57mm
Pin diameter (d2): 5.94mm
Pin length (Lc): 73.9mm
Inner plate depth (h2): 18mm
Plate thickness (T): 2.42mm
Transverse pitch (Pt）: 22.78mm
