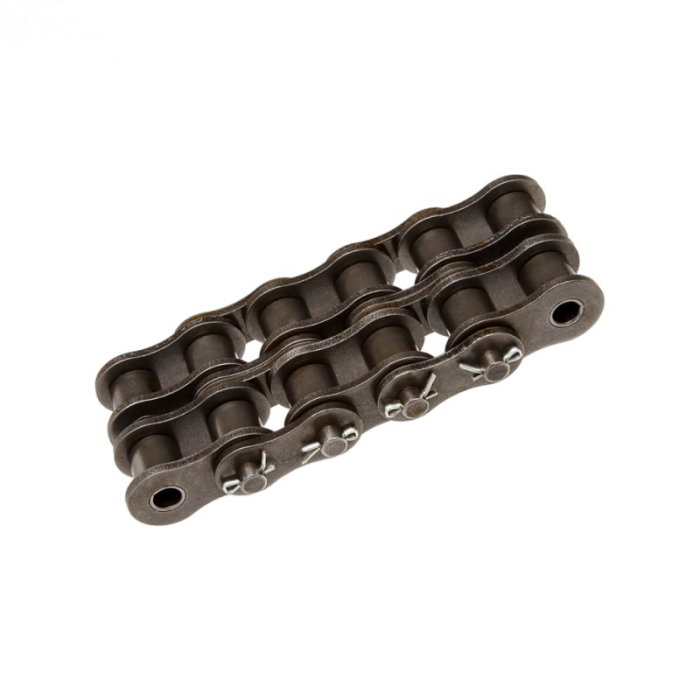

#60-2 double-row cottered roller chain is produced following ANSI standards. Designed with two parallel strands, it features higher tensile strength and larger load capacity than single-strand #60 chain, ideal for high-torque power transmission.
The cottered pin structure locked by cotter pins prevents pin displacement during long-term operation, facilitating quick assembly, disassembly and daily maintenance. Precision processing guarantees smooth engagement with matching double sprockets, stable running and low elongation.
This chain is widely applied to conveyors, agricultural machinery, packaging devices and various industrial transmission equipment. Stainless steel versions and customized surface treatments are available upon your demand.

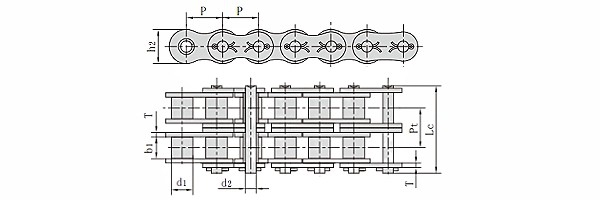

ANSI #60-2 Cottered Roller Chains Dimension
Pitch (P): 19.05mm
Roller diameter (d1): 11.91mm
Width between inner plates (b1): 12.57mm
Pin diameter (d2): 5.94mm
Pin length (Lc): 51.1mm
Inner plate depth (h2): 18mm
Plate thickness (T): 2.42mm
Transverse pitch (Pt): 22.78mm
