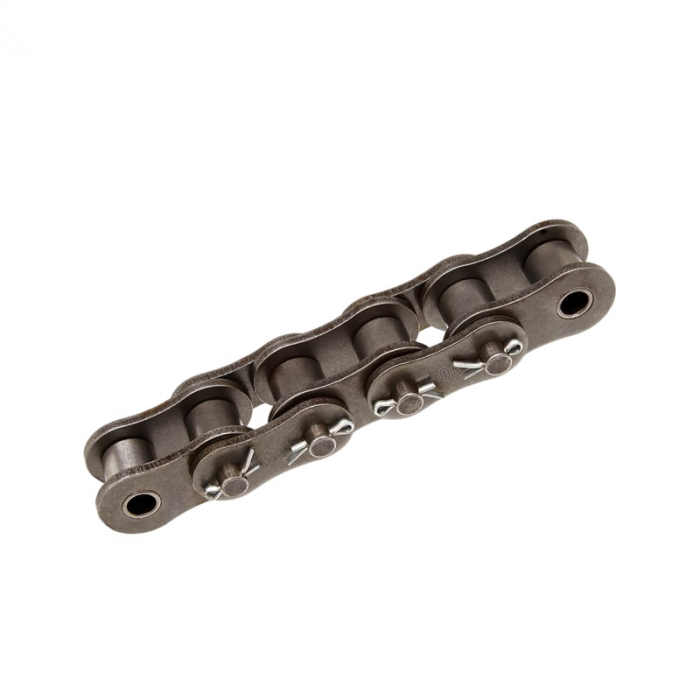

#60H cottered roller chain complies with ANSI standards, upgraded from standard #60 chain with thicker side plates and reinforced pins for higher tensile strength and outstanding load capacity. Designed for rigorous heavy-load continuous operation, it features excellent wear resistance and anti-fatigue performance to reduce stretching during long-term use.
Equipped with cottered structure secured by cotter pins, it enables easy installation, quick disassembly and convenient routine maintenance while effectively preventing loose connections. Precisely machined for smooth meshing with matching sprockets, it runs steadily with low noise. Widely applied in conveyors, construction machinery, agricultural equipment and heavy industrial transmission drives. Stainless steel variants can be customized on demand.

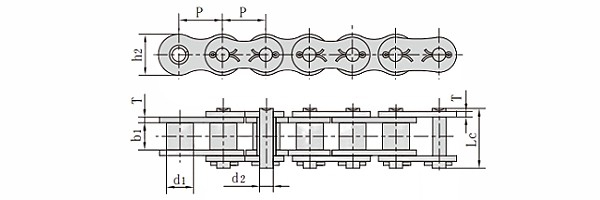

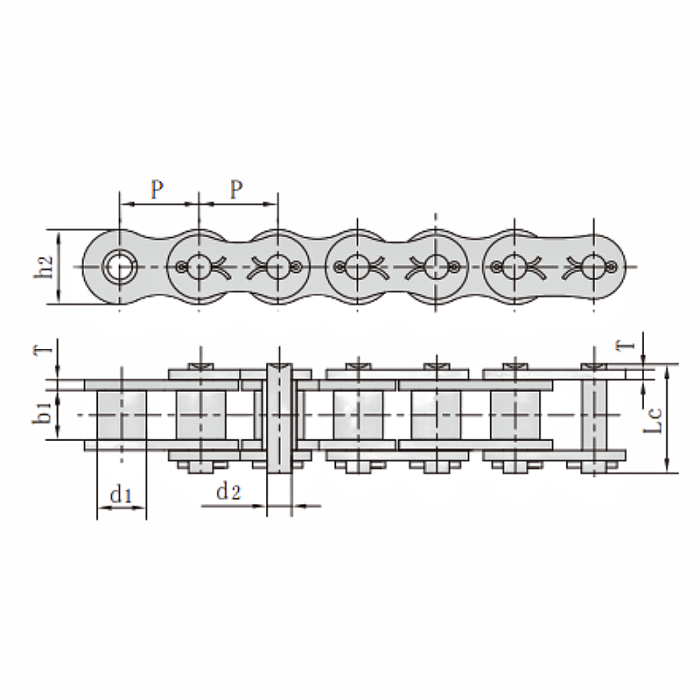

ANSI #60H Roller Chains Dimension
Pitch (P): 19.05mm
Roller diameter (d1): 11.91mm
Width between inner plates (b1): 12.57mm
Pin diameter (d2): 5.94mm
Pin length (Lc): 28.3mm
Inner plate depth (h2): 18mm
Plate thickness (T) : 2.42mm
