ANSI #60H-3 Heavy Duty Roller Chain

  • Categories: Triple Heavy Duty Roller Chains
  • Brand: HXST-Drive
  • Model: ANSI 60H-3 Roller Chain
  • Material: Carbon Steel
  • Color: Natural
  • Surface Treatment: Shot Peening /Heat Treatment/Plating/Lubrication
  • Accuracy: High Precision Roller Chain
  • Quality: Durable Roller Chain
  • Interchangeability: Directly Interchangeable With Other Brands
  • +86 15336786278
    jake@hxstdrive.com
    • Product Introduction

    Product Introduction


    裁剪旋转 (1)_compressed.jpeg

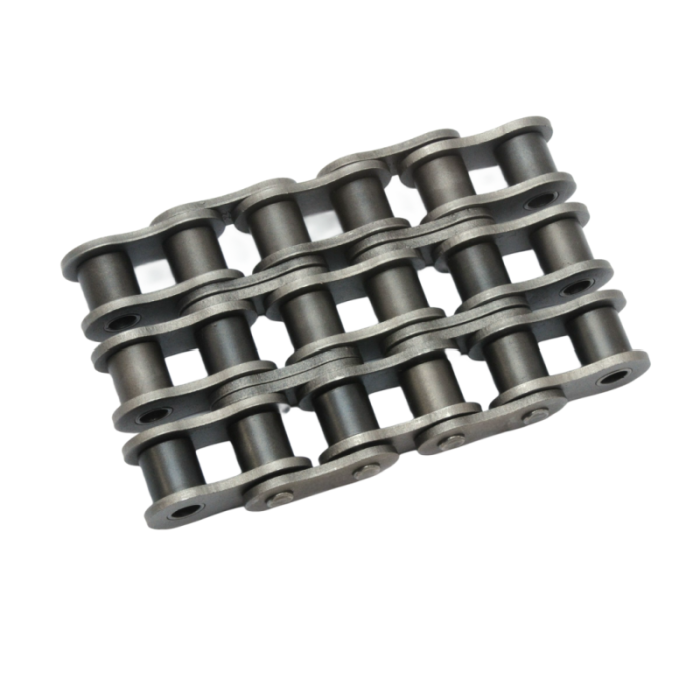

    About #60H-3 Heavy Duty Roller Chain

    #60H-3 heavy-duty triple-strand roller chain is an ANSI-standard reinforced three-row chain upgraded from standard #60 chain. It adopts thicker heat-treated side plates, sturdy pins and wear-resistant rollers, delivering much higher tensile strength, strong shock resistance and excellent durability for long-term heavy-load running.

    Precision manufacturing ensures accurate size matching, smooth meshing with triple sprockets, low elongation and steady power transmission. It is widely used in heavy conveyors, agricultural equipment, construction machinery and high-torque industrial transmission systems. Custom attachments, hollow pin structures and stainless steel versions are available to adapt to various harsh operating conditions.

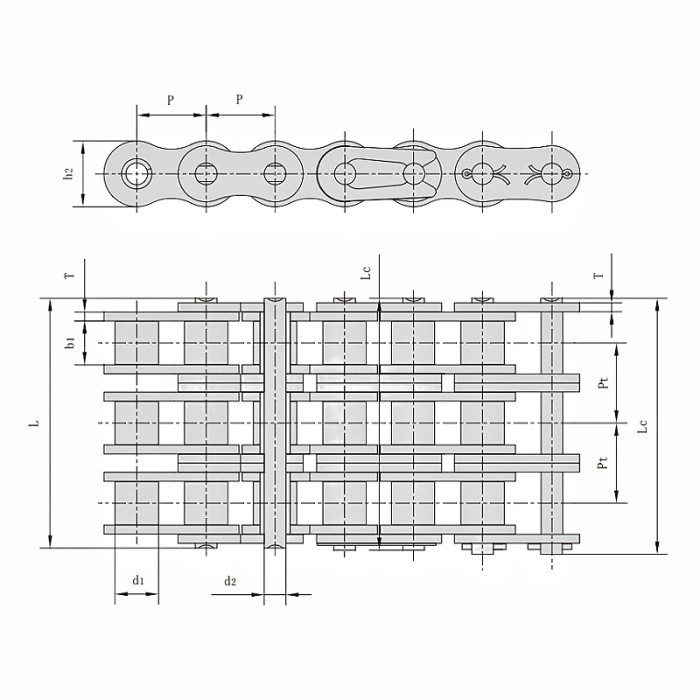

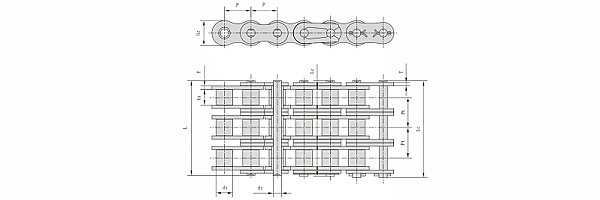

    ANSI #60H-3 Heavy Duty Roller Chains  Dimension


  • Pitch (P): 19.05mm

  • Roller diameter (d1): 11.91mm

  • Width between inner plates (b1): 12.57mm

  • Pin diameter (d2): 5.94mm

  • Pin length (L): 81.4mm

  • Pin length (Lc): 83.2mm

  • Inner plate depth (h2): 18mm

  • Plate thickness (T): 3.25mm

  • Transverse pitch (Pt): 26.11mm
