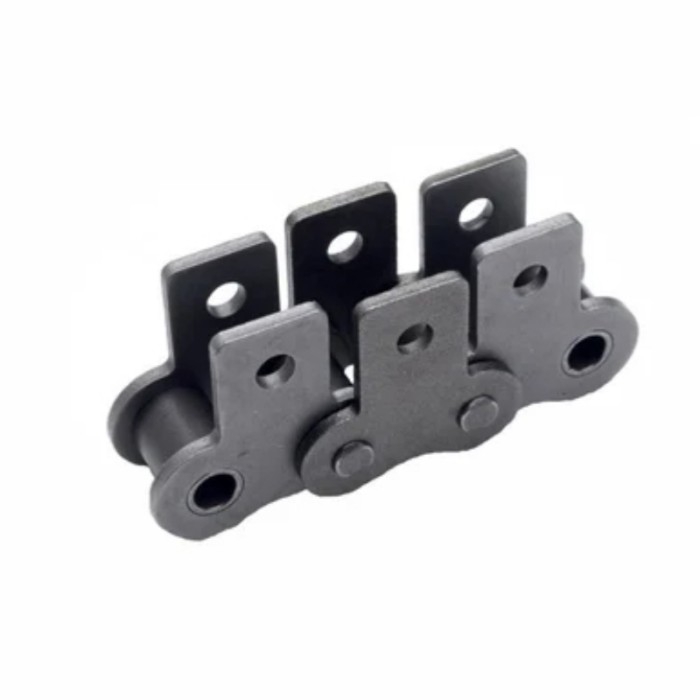

ANSI #50 SK1 attachment roller chain conforms strictly to ANSI standard specifications, ideal for power transmission and material conveying equipment. Equipped with double-sided SK1 offset attachments with mounting holes, it enables convenient installation of baffles, positioning brackets and conveying fixtures.
Constructed from high-strength carbon steel with professional heat treatment, this chain delivers superior tensile strength, wear resistance and fatigue resistance for long-term continuous operation. Precision rollers effectively lower friction and operating noise for smooth, stable running performance.
It is widely applied in agricultural conveyors, packaging machinery, automated assembly lines and general handling systems. Stainless steel, cottered pin and customized length options can be offered on demand.

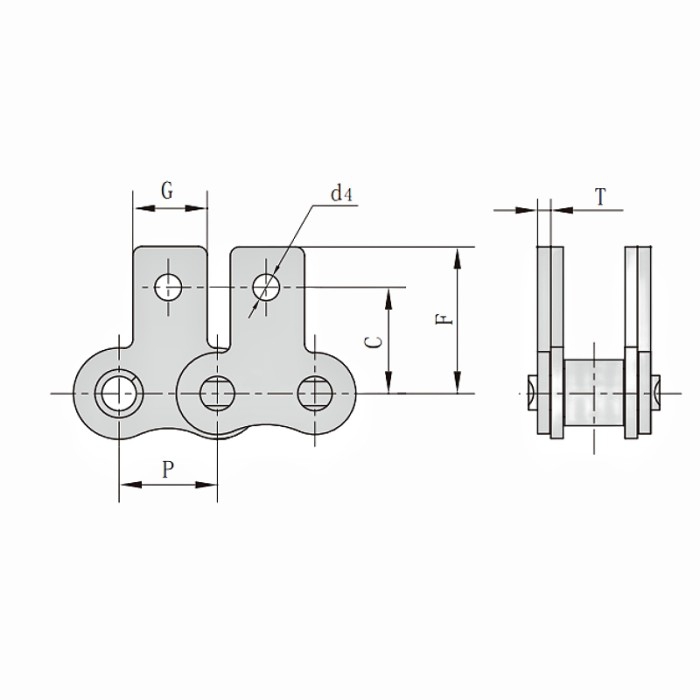

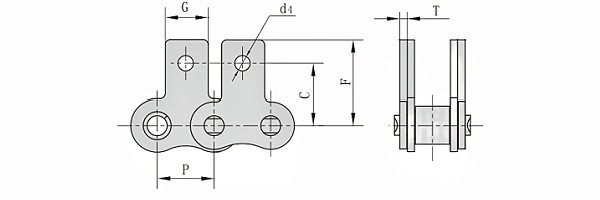

ANSI #50 SK1 Attachment Roller Chain Dimension
Pitch (P): 15.875mm
Attachment Dimension (G): 12.7mm
Attachment Dimension (C): 15.9mm
Attachment Dimension (F): 25.25mm
Attachment Dimension (d4): 5.5mm
Link Plate Thickness (T): 2.03mm
