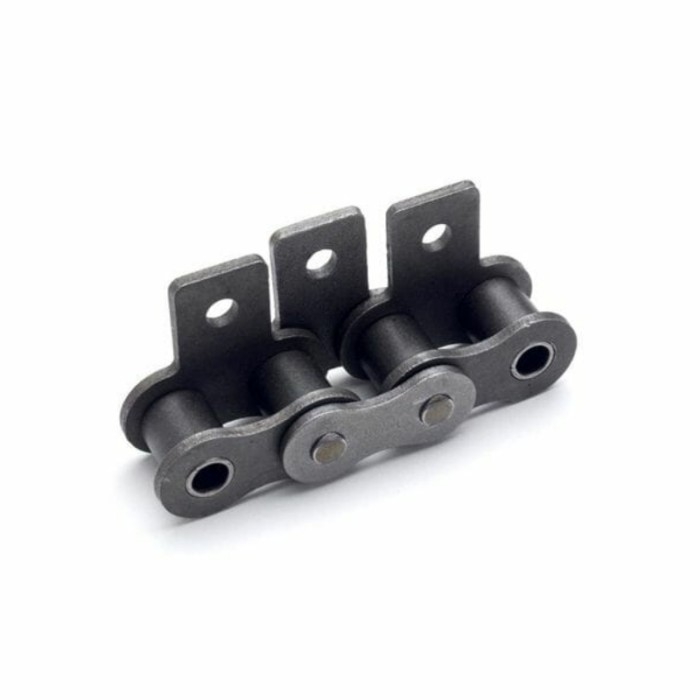

ANSI #50 SA1 attachment roller chain is produced in full compliance with ANSI industry standards for power transmission and conveying systems. Designed with single-sided outward SA1 bent attachments with pre-drilled mounting holes, it allows quick installation of slats, baffles and custom fixtures on conveyor lines.
Made of premium carbon steel with strict heat treatment, the chain features high tensile strength, outstanding wear resistance and anti-fatigue performance for long-duration stable operation. Precision-machined rollers reduce friction and running noise.
Commonly used in packaging equipment, agricultural conveyors, automated assembly and material handling machinery. Stainless steel, cottered pin and custom-length options are available upon your request.

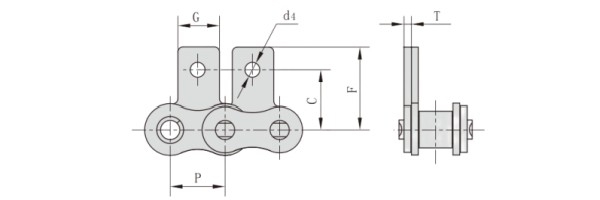

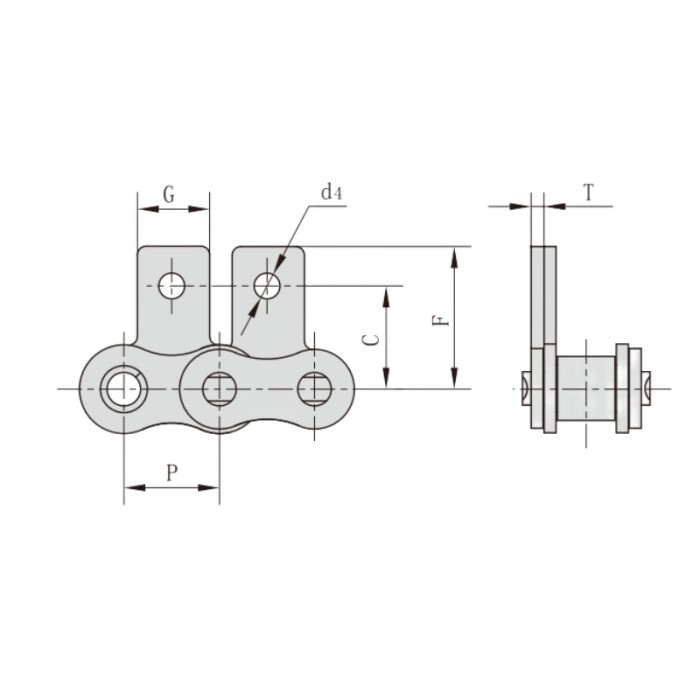

ANSI #50 SA1 Attachment Roller Chain Dimension
Pitch (P): 15.875mm
Attachment Dimension (G): 12.7mm
Attachment Dimension (C): 15.9mm
Attachment Dimension (F): 25.25mm
Attachment Dimension (d4): 5.5mm
Link Plate Thickness (T): 2.03mm
