ANSI #50SS-2 double-strand stainless steel roller chain strictly complies with ANSI industry standards. Constructed from premium stainless steel material, it delivers outstanding corrosion resistance against moisture, acid, alkali and humid working environments.
The precision-machined pins, bushings and rollers ensure smooth transmission, low friction, stable operation and extended service life. Its double-row structure provides higher tensile strength and load capacity than single-strand chains, ideal for food processing, pharmaceutical, marine equipment and chemical conveying machinery.
Fully customizable with connecting links, offset links and attachment plates to meet diverse drive and conveying demands.

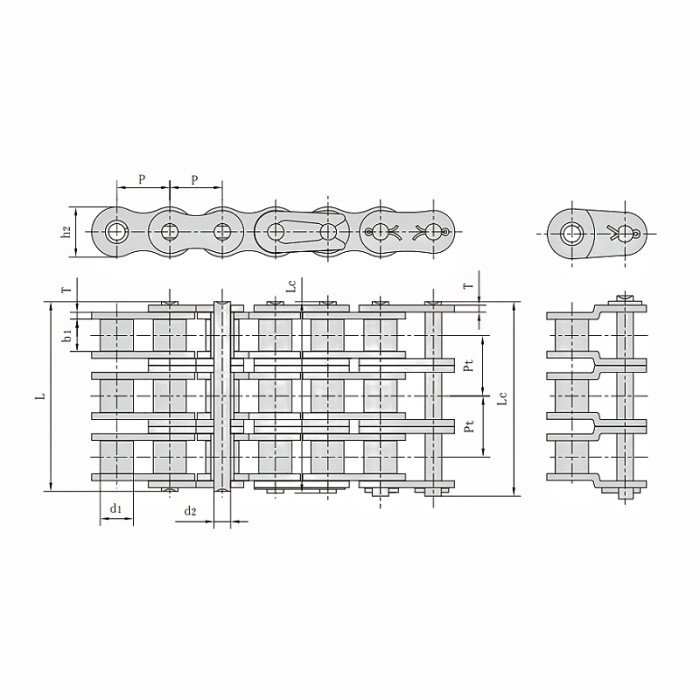

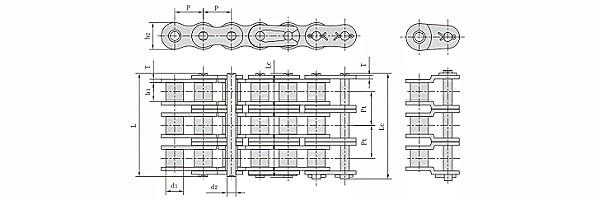

ANSI #50SS-3 Stainless Steel Roller Chain Dimension
Pitch (P): 15.875mm
Roller diameter : 10.16mm
Width between inner plates (b1): 9.4mm
Pin diameter (d2): 5.08mm
Pin length (L): 57mm
Pin length (Lc): 58.5mm
Inner Plate depth (h2): 15.09mm
Plate thickness (T): 2.03mm
Transverse pitch (Pt): 18.11mm
